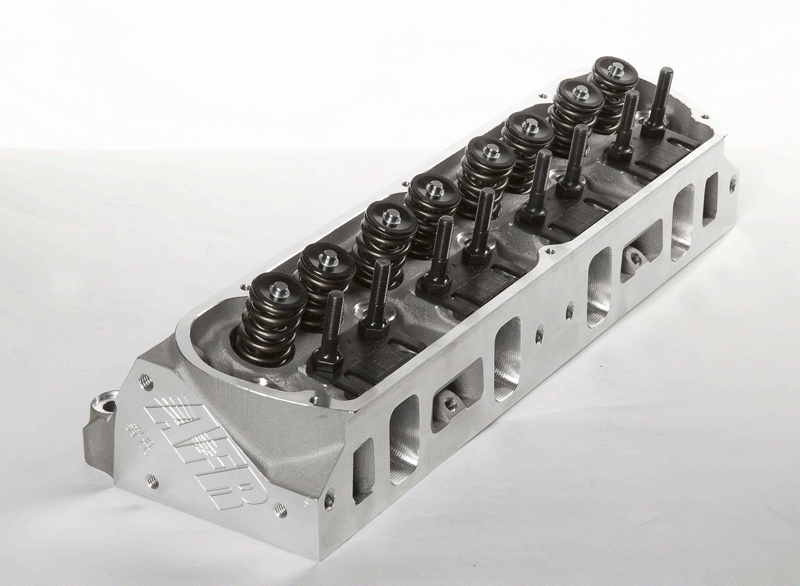

AFR 165cc Renegade SBF Cylinder Heads, Non-Emissions

AFR`s 165cc "Street" heads are the preferred choice over re-worked factory heads. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout, in addition these are the only AFR heads that are compatible with the OEM piston valve relief. Recommended for street, towing, or street/strip engines with displacements up to 351 cubic inches, operating up to 6000 RPM. Legal for 1995 and older emissions controlled vehicles under CARB EO #D-250-3 (Part numbers 14xx). Component upgrade and machining options are available to customize AFR Heads to your specific build.






The Small Port, High Velocity, Torque Monster!

For the ultimate small block Ford street car, you’ve got to use
AFR’s all new 165cc emissions legal aluminum cylinder heads. Unlike
some aftermarket heads, AFR’s Ford cylinder head (CARB EO #D-250-3)
fits all your stock components; no special parts are required! With
lightweight 8mm 1.900” intake valves, 1.600” exhaust valve,
combustion chamber volume of 58cc (60cc for pedestal mount heads),
and 68cc exhaust ports, AFR’s new 165cc Ford aluminum cylinder head
is perfect for 289 and 302 engines operating from idle to 6000 rpm.
The non-emissions 165cc aluminum cylinder heads come ready for the
maximum street/strip Small Block Ford performance possible.
They include the exact same components as the emissions legal heads,
but do not have the ports for smog compliance. Performance wise the
emissions legal and non-emissions heads are identical. A 3/4" thick head
deck makes any AFR head ideal for nitrous or blower applications,
even with the standard 68cc exhaust ports. These heads will not
accept shaft mount rocker arms. Hardened push rods required.

color="#ffffff" size="4">Basic Package Components	color="#ffffff" size="4">Part #
100% CNC Ported Combustion Chambers 100% CNC Ported Exhaust Ports 100% CNC Ported Intake Ports Competition 5-angle Valve Job
Bead Lock Intake Valve, 1.900"	AFR #7249
Bead Lock Exhaust Valve, 1.600"	AFR #7250
Pedestal 8mm Bead Lock Intake Valve, 1.900" x 5.080" O.A.L	AFR #7262
Pedestal 8mm Bead Lock Exhaust Valve, 1.600" x 5.100" O.A.L	AFR #7264
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring, 140 lbs on seat, .600" maximum lift, Max RPM 6300-6500 (upgrades available)	AFR #8017
7° Chrome Moly Retainers	AFR #8514
7° Bead Lock Valve Keepers	AFR #9007
ARP 3/8" Rocker Studs	AFR #6409
Adjustable 5/16" Guide Plates	AFR #6103
Viton Valve Seals	AFR #6612
Hardened Spring Cup	AFR #8042
Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep	AFR #9060
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep	AFR #9070
Bronze Valve Guides	AFR #9051
Thermactor Air Injector	AFR #6226

color="#ffffff" size="4">Specifications, Features, and Optional Supporting Components

Head style="float:right;"> Material	A356 Aluminum
Intake Port Volume	165cc
Intake Port Dimension	style="float:right;">2.060" H x 1.250" W 3/8 Radius
Intake Port Location	Stock
Exhaust Port Volume	style="float:right;">68cc
Exhaust Port Dimension	1.355" H x 1.360" W
Exhaust Port Location	Stock
Combustion Chamber Size	58cc or 60cc
Valve Cover Bolt Pattern	style="float:right;">Perimeter Bolt
Valve Angle	20°
Valve Spring Pocket Diameter	style="float:right;">1.460" O.D
Max Valve Spring Pocket Machining	1.625" O.D
Deck Thickness	style="float:right;">.750"
Minimum Bore Diameter	4.000"
Flat Mill	style="float:right;">.006" per cc 54cc Maximum
Angle Mill	.009" per cc 48cc Maximum
Minimum Cross Sectional Area	style="float:right;">1.935 sq. in
Note:Angle mills might require a .120" Thick intake gasket.
Spark Plug Dimensions	style="float:right;">14mm x .750" w/Gasket Seat
Carb EO#	D-250-3
Head Bolt Diameter 1402 & 1472	style="float:right;">7/16"
Head Bolt Diameter 1399	1/2"
Intake Port Gasket, Fel-Pro #1250	AFR #6828
Exhaust Port Gasket, Fel-Pro #1415	AFR #6837
Head Gasket, 302/351 Windsor, Fel-Pro #1011-1	AFR #6808
SBF 7/16" Head Bolt Kit, ARP #154-3701	AFR #6823
SBF 7/16" Bolt, Head Stud Kit, ARP #254-4401	AFR #6822
1/2" Bolt - 7/16" Thread Head Bolts, ARP 254-3708	AFR #6819
Head Bolt Washer Kit, Manley	AFR #6820
Stud Girdle (AFR Specific)	AFR #6807
Suggested Manifold	style="float:right;">Performer or Performer RPM
Spark Plug Starting Range	Autolite 3924

Important: Do not port
match you intake manifold to any Fel-Pro gasket as it does not
precisely match AFR heads.

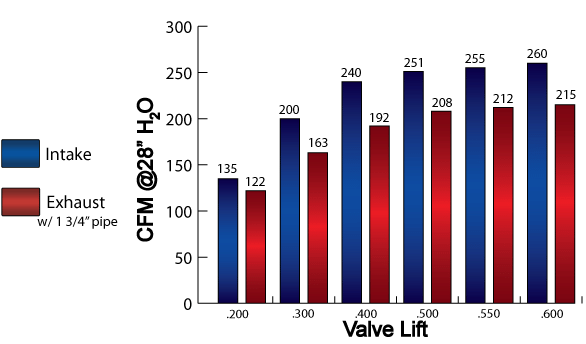

Note: Milling head deck will affect flow numbers.
