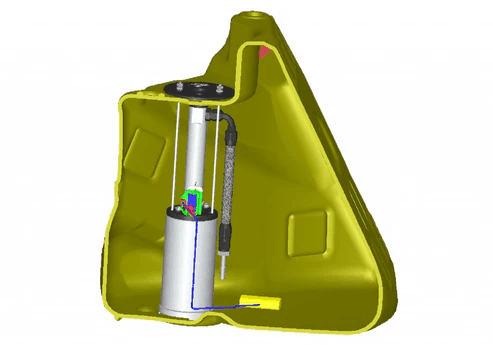

Finally, a solution to your Corvette's fuel system needs. No more drilling your fuel tanks, no more risking pump failure in a 1, 2, or 3 pump set ups, no more surge tanks, no more mess. Aeromotive has engineered a patent-pending, complete drop-in fuel system available for C6 and late C5 Corvettes. The system provides a single Eliminator Fuel Pump capable of supporting big HP. The best part, it's a complete drop-in assembly into your factory tank that still incorporates the factory jet siphon system. Now you can plumb a true return-style system into your Corvette without the worry of the siphon system and while using the factory fuel tank. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications
Features:
Fits 2003 1/2 and later Corvettes (Late C5 and C6)
ORB-10 outlet port
ORB-06 return port
Incorporates factory jet siphon system and sending unit
Includes an integrated 100-Micron Stainless Steel pre-pump filter
Utilizes the factory tank, o-ring, lock ring and mounting location
Eliminator Fuel Pump Power Specs: |
CARB or EFI |
Power Adder |
Fuel |
Max HP |
Fuel Injected |
Forced Induction |
Gas |
1400 |
Carbureted |
Forced Induction |
Gas |
1700 |
Fuel Injected |
Forced Induction |
E85 |
980 |
Carbureted |
Forced Induction |
E85 |
1190 |
Fuel Injected |
Naturally Aspirated |
Gas |
1900 |
Carbureted |
Naturally Aspirated |
Gas |
2300 |
Fuel Injected |
Naturally Aspirated |
E85 |
1330 |
Carbureted |
Naturally Aspirated |
E85 |
1610 |
