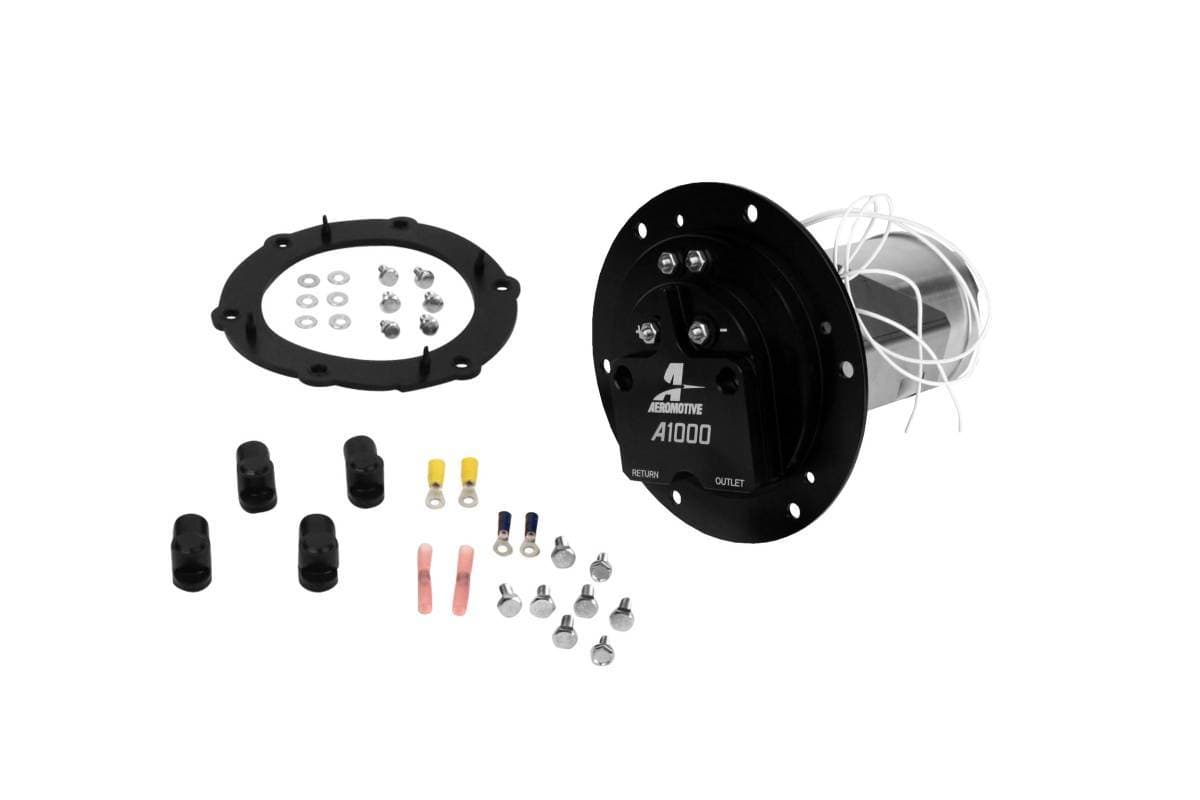

In 2003 Ford developed a specific tank for the 03 and 04 Mustang Cobras. This tank looked like a normal tank from the outside, but featured one of the finest internal baffling systems we've seen from an OE tank to date. In late 2011, Ford decided to discontinue these tanks. At Aeromotive, we saw and opportunity to reproduce these tanks. Not only can we offer reproduction 03-04 Cobra tanks, but we can also modify the tooling in the production process to offer this same tank to fit all Fox Body Mustangs. And that is exactly what we did. But we took it one step further. We built specific A1000 and Eliminator Fuel Pumps that bolt right into top of these tanks.
In doing so, we created a fuel pump that not only drops into our reproduction tank, but also the factory 03-04 Ford Mustang Cobras. These pumps are nothing more than variations on our popular and proven A1000 and Eliminator Fuel Pumps. So whether you need a replacement pump for your Aeromotive kit, or already have an 03-04 Cobra Tank, these pumps are the perfect choice. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. See notes and details below.
A1000 Fuel Pump Power Specs: |
CARB or EFI |
Power Adder |
Fuel |
Max HP |
Fuel Injected |
Forced Induction |
Gas |
1000 |
Carbureted |
Forced Induction |
Gas |
1200 |
Fuel Injected |
Forced Induction |
E85 |
700 |
Carbureted |
Forced Induction |
E85 |
840 |
Fuel Injected |
Naturally Aspirated |
Gas |
1300 |
Carbureted |
Naturally Aspirated |
Gas |
1500 |
Fuel Injected |
Naturally Aspirated |
E85 |
910 |
Carbureted |
Naturally Aspirated |
E85 |
1050 |
Features:
Direct fit for 03-04 Ford Mustang Cobra Fuel Tanks
Also fits Aeromotive P/N's 18690, 18685, 18686, 17130, 17131
100-Micron Stainless Steel Pre Filter
(1) ORB-08 Outlet Port & (1) ORB-08 Return Port
Installs using factory mounting flange
Uses factory 03-04 Fuel Level Sending Unit
Wiring upgrade recommended
