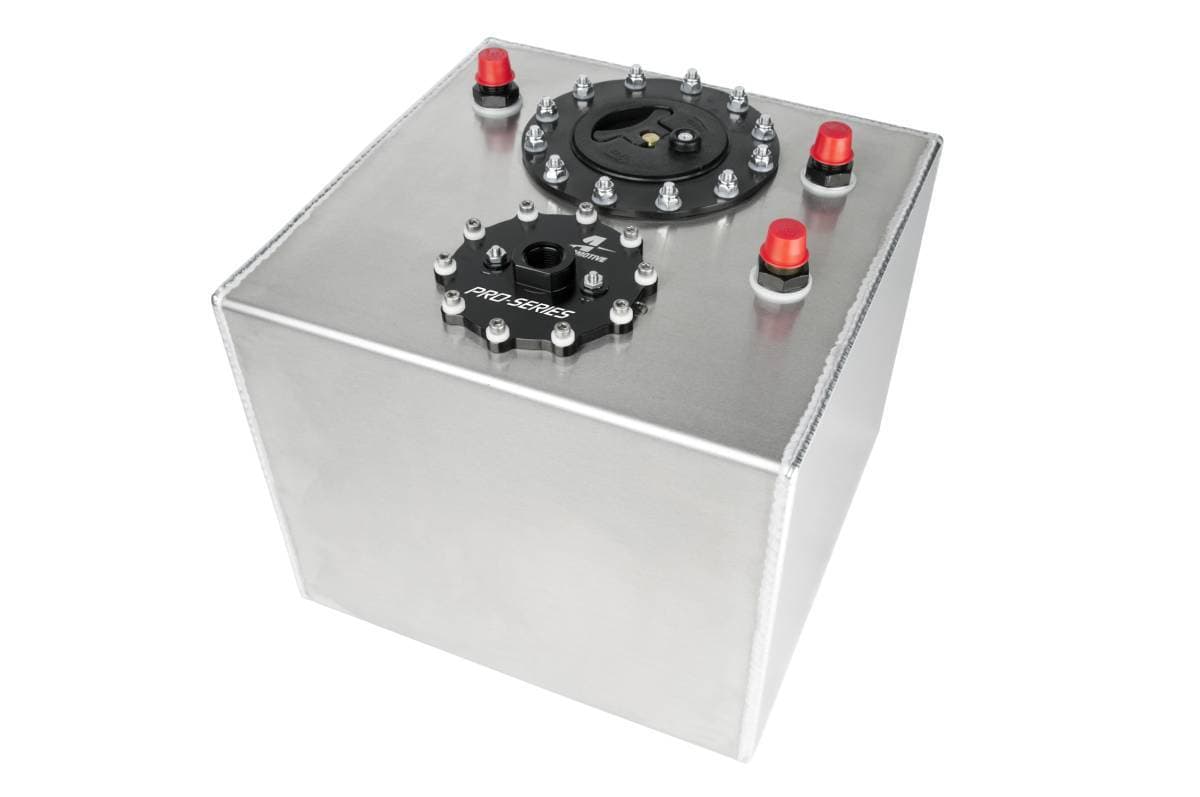

Aeromotive Stealth 6-Gallon Fuel Cell with Integrated Pro-Series Fuel Pump (Includes Pre-Pump Fuel Filter)

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Features:
Pro-Series Fuel Pump (internal) - P/N 18005
100 Micron Stainless Steel Pre-Filter
6.2 Gallon Capacity
AN-08 Return Line Provision
ORB-10 Outlet Port
(2) AN-08 Vents with Rollover Valves
Standard 12-Bolt Flush Mount Lid Assembly

Pro-Series Fuel Pump Power Specs:
CARB or EFI	Power Adder	Fuel	Min HP	Max HP
Carbureted	Forced Induction	Gas	1190	2000
Carbureted	Naturally Aspirated	E85	1127	1820
Fuel Injected	Naturally Aspirated	E85	931	1540
Carbureted	Forced Induction	E85	833	1400
Fuel Injected	Forced Induction	Gas	980	1700
Fuel Injected	Forced Induction	E85	833	1190
Carbureted	Naturally Aspirated	Gas	1610	2600
Fuel Injected	Naturally Aspirated	Gas	1330	2200
