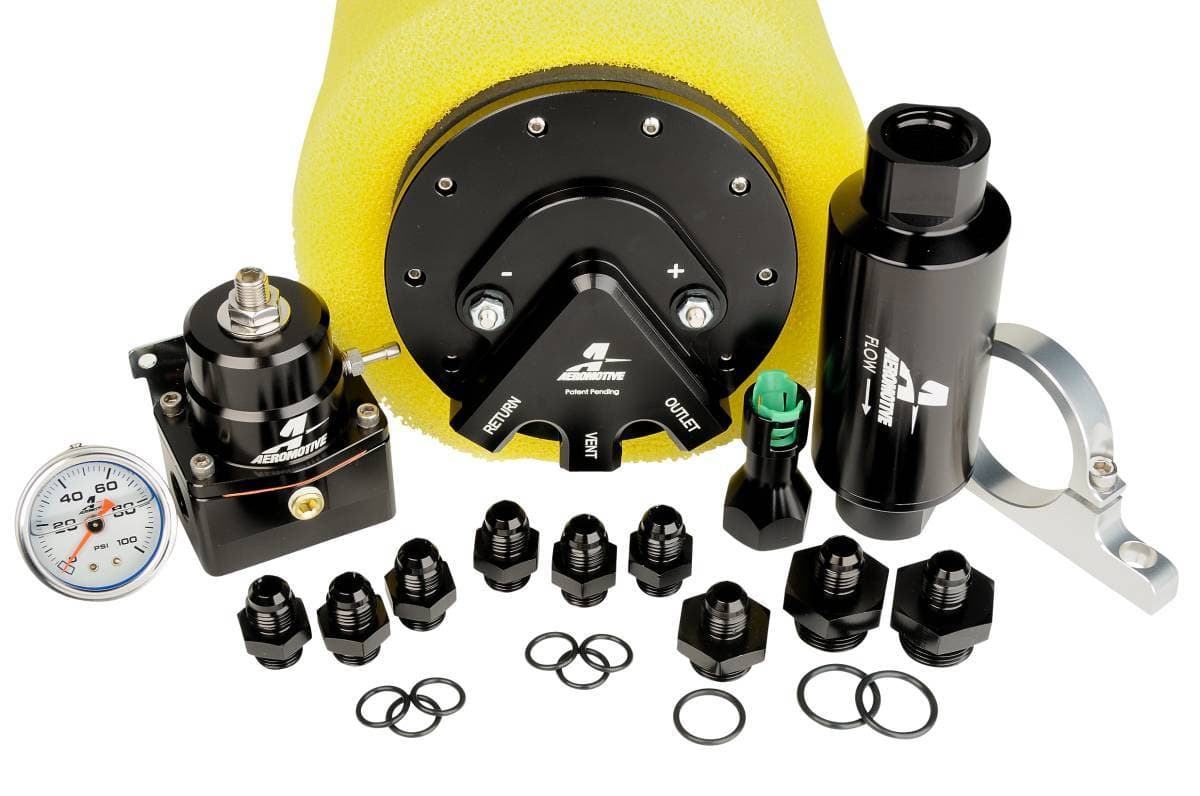

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with OEM "return-less" style fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, 3/8" Quick-Connect fuel rail adapter, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.
Ideal for late model engine transplants so hot with Street Rodders around the world. Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.
Features:
Phantom 340 LPH Fuel Pump
Filter 10 micron Paper
Filter Bracket
Fuel Pressure Regulator
Fuel Pump Wiring Kit.
3/8 Quick Connect to AN-08
AN-08 ORB to AN-06 flare
(6) AN-06 ORB to AN-06 flare
(2) AN-10 ORB to AN-06 flare
Fuel Pressure Gauge, 0-100 psi
340 LPH Fuel Pump Power Specs: |
CARB or EFI |
Power Adder |
Fuel |
Min HP |
Max HP |
Fuel Injected |
Forced Induction |
E85 |
100 |
490 |
Carbureted |
Forced Induction |
Gas |
400 |
850 |
Fuel Injected |
Naturally Aspirated |
Gas |
400 |
850 |
Fuel Injected |
Naturally Aspirated |
E85 |
220 |
595 |
Carbureted |
Naturally Aspirated |
E85 |
325 |
700 |
Carbureted |
Naturally Aspirated |
Gas |
500 |
1000 |
Carbureted |
Forced Induction |
E85 |
220 |
595 |
Fuel Injected |
Forced Induction |
Gas |
350 |
700 |
