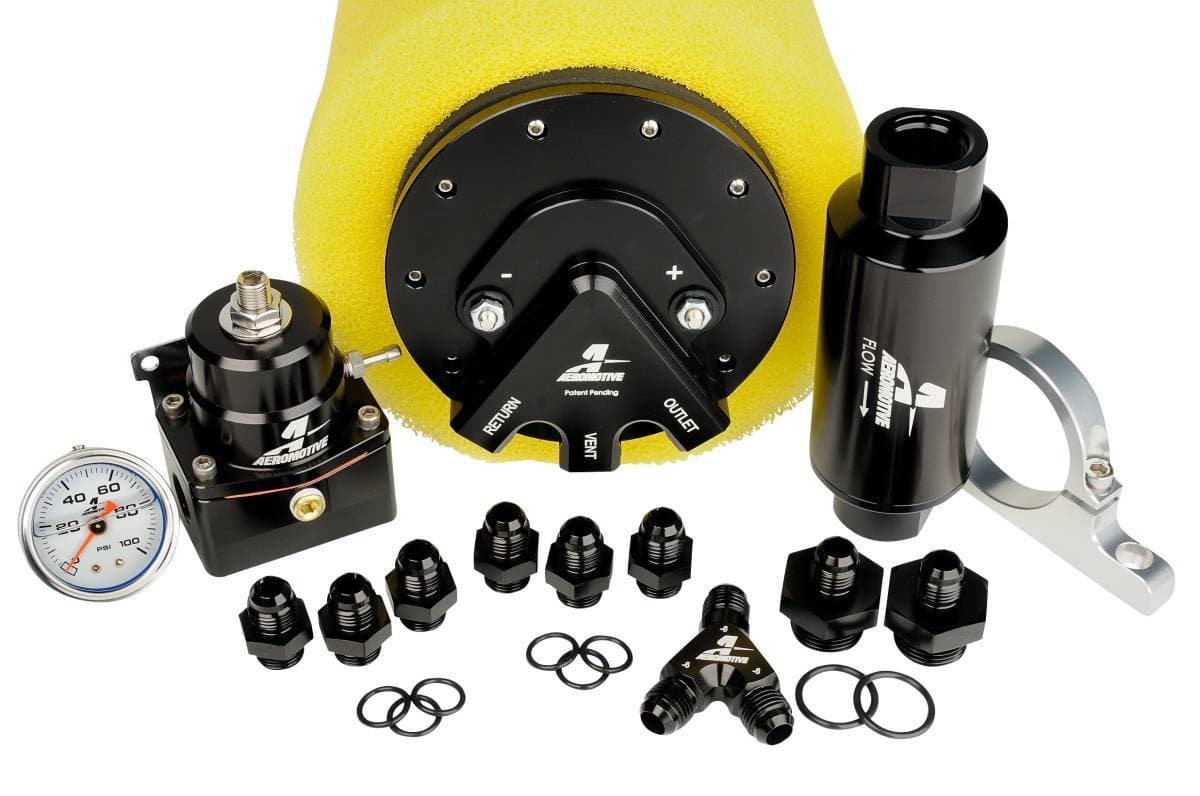

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.
Ideal for naturally aspirated and blown, EFI engines producing from 300 - 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.
Features:
Phantom 340 LPH Fuel Pump
Filter Assembly, 10-micron
Filter Bracket
Fuel Pressure Regulator
Fuel Pump Wiring Kit.
(6) AN-06 ORB to AN-06 flare
(2) AN-10 ORB to AN-06 flare
Fuel Pressure Gauge, 0-100 psi
Y-Block, AN-06
340 LPH Fuel Pump Power Specs: |
CARB or EFI |
Power Adder |
Fuel |
Min HP |
Max HP |
Fuel Injected |
Forced Induction |
E85 |
100 |
490 |
Carbureted |
Forced Induction |
Gas |
400 |
850 |
Fuel Injected |
Naturally Aspirated |
Gas |
400 |
850 |
Fuel Injected |
Naturally Aspirated |
E85 |
220 |
595 |
Carbureted |
Naturally Aspirated |
E85 |
325 |
700 |
Carbureted |
Naturally Aspirated |
Gas |
500 |
1000 |
Carbureted |
Forced Induction |
E85 |
220 |
595 |
Fuel Injected |
Forced Induction |
Gas |
350 |
700 |
