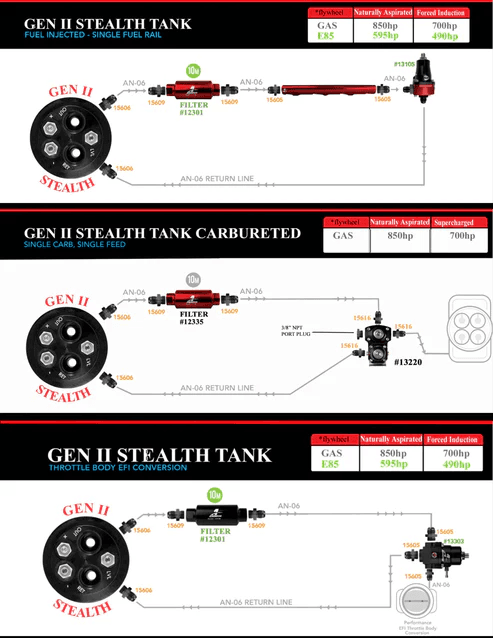

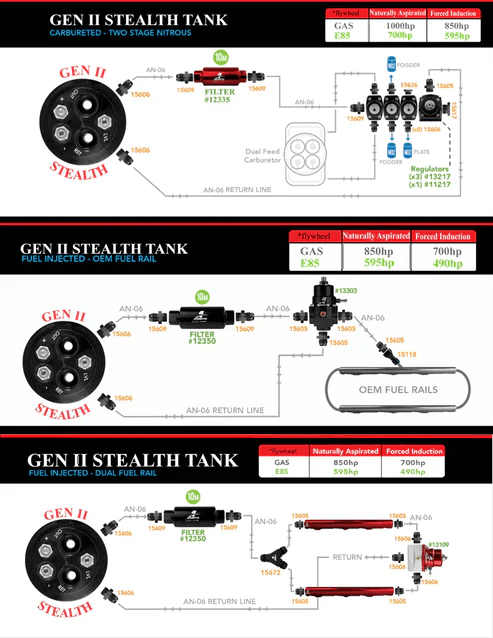

| 340 LPH Fuel Pump Power Specs: | |||
| CARB or EFI | Power Adder | Fuel | Max HP |
| Fuel Injected | Forced Induction | E85 | 490 |
| Carbureted | Forced Induction | Gas | 850 |
| Fuel Injected | Naturally Aspirated | Gas | 850 |
| Fuel Injected | Naturally Aspirated | E85 | 595 |
| Carbureted | Naturally Aspirated | E85 | 700 |
| Carbureted | Naturally Aspirated | Gas | 1000 |
| Carbureted | Forced Induction | E85 | 595 |
| Fuel Injected | Forced Induction | Gas | 700 |
Features:

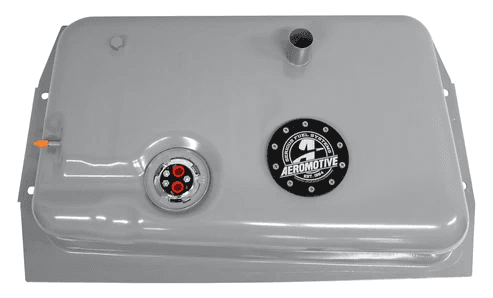

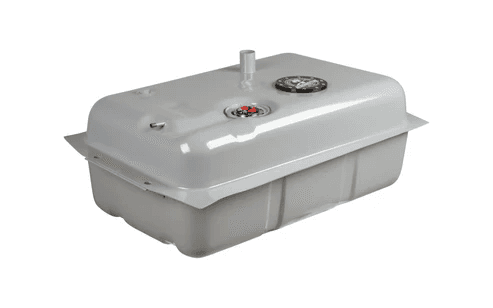

Rear Mount Fuel Tank (Behind Rear Axle) Replaces OEM In-Cab Fuel Tank
Available in 3 different pump options – 200 LPH, 340 LPH, 450 LPH
Painted steel tank comes fully assembled
Easy installation process requires drilling only – no frame rail cutting

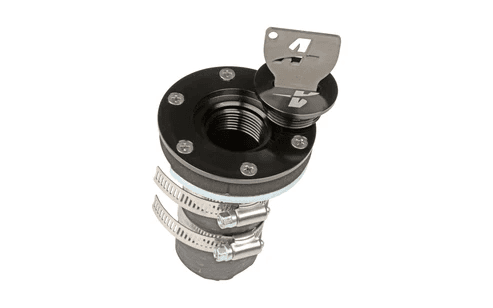

Includes comprehensive installation kit – bed fuel filler cap assembly, frame rail/bed floor drill guides, and hardware
17 gallon fuel tank capacity
Includes Aeromotive Patented Foam and Basket Assembly/Gen II Tank Technology to control fuel slosh and pump flooded
0-90 Ohm sending unit installed
-06 ORB outlet and return ports
