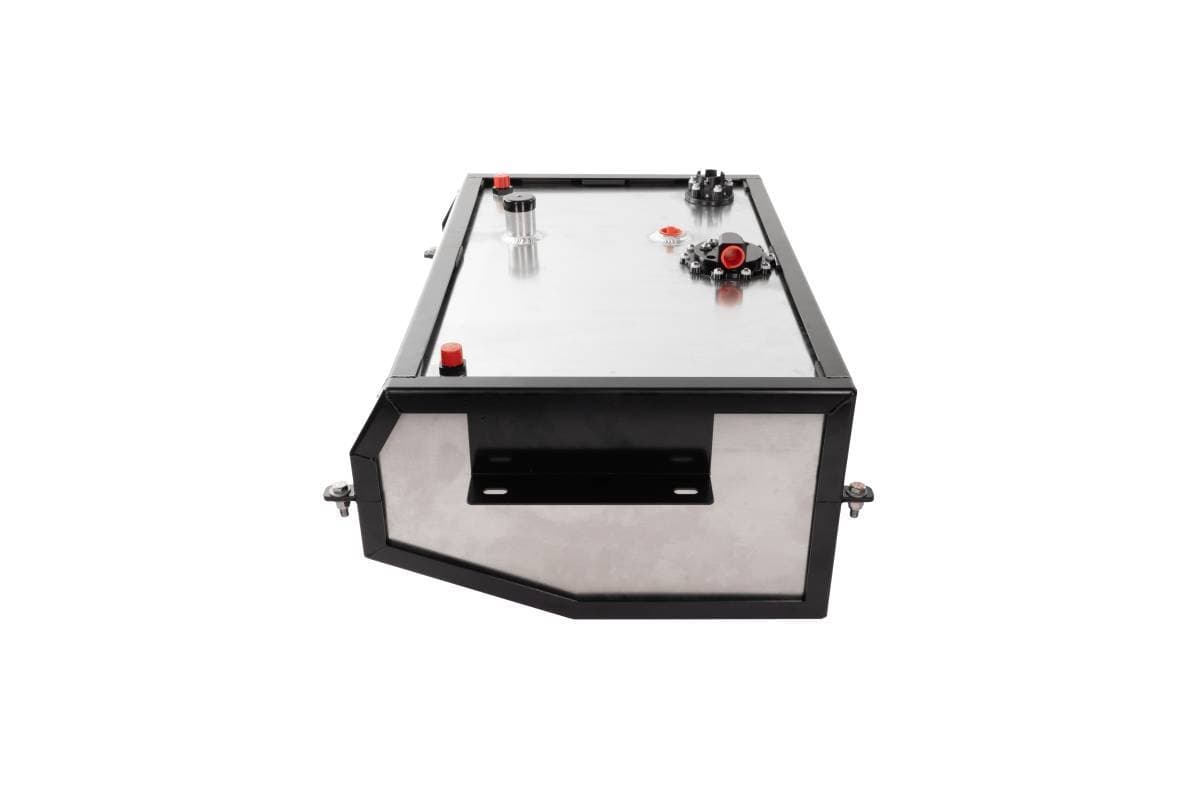

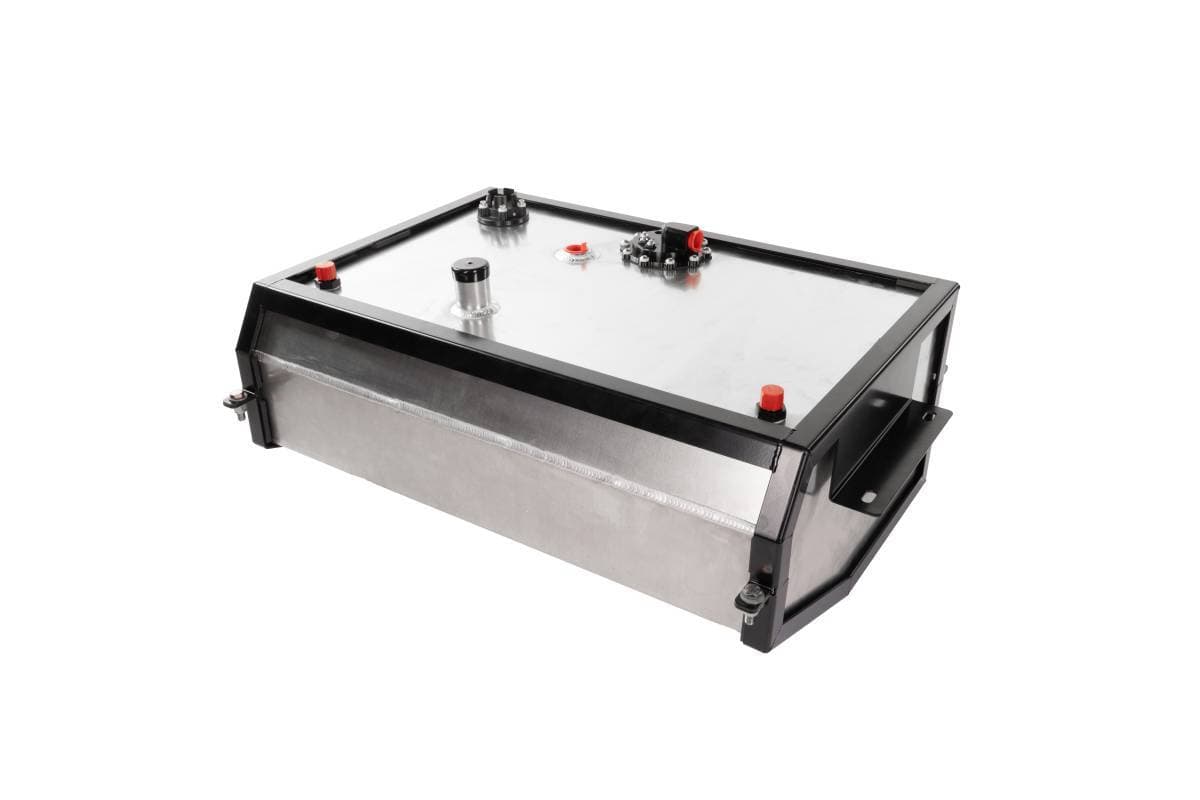

Aeromotive Fuel Cell For 67-72 Chevy C10 / 73-87 Square Body C10 with A1000 Brushless Fuel Pump - Rear Mount

Aeromotive Fuel Cell For 1967-1972 Chevy C10 Truck w/ A1000 Brushless Fuel Pump - Rear Mount

Note: relocates the fuel tank from the cab to the rear, positioned between the frame rails, to enhance weight distribution and modernize your fuel system!

*Notice if you remove the rear most crossmember it will also fit 1973-1987 square body C10 trucks!

Features:
Fabricated aluminum Fuel Cell w/ Brushless A1000 Fuel Pump
Designed to relocate the fuel tank from the cab to the rear between the frame rails
17 gallon capacity
Two-piece bracket system made of 12 gauge steel and powdered coated for durability
Two An-08 vents that are roll-over protected
Isolators rest between the cell and the brackets to minimize vibrations and noise
ORB-10 return port for smoother return flow
Easy installation

A1000 Fuel Pump Power Specs:
CARB or EFI	Power Adder	Fuel	Min HP	Max HP
Fuel Injected	Forced Induction	Gas	600	1000
Carbureted	Naturally Aspirated	Gas	800	1500
Fuel Injected	Naturally Aspirated	E85	500	910
Fuel Injected	Naturally Aspirated	E85	600	1050
Fuel Injected	Naturally Aspirated	Gas	720	1300
Carbureted	Forced Induction	Gas	700	1200
Carbureted	Forced Induction	E85	500	840
Fuel Injected	Forced Induction	E85	400	700
