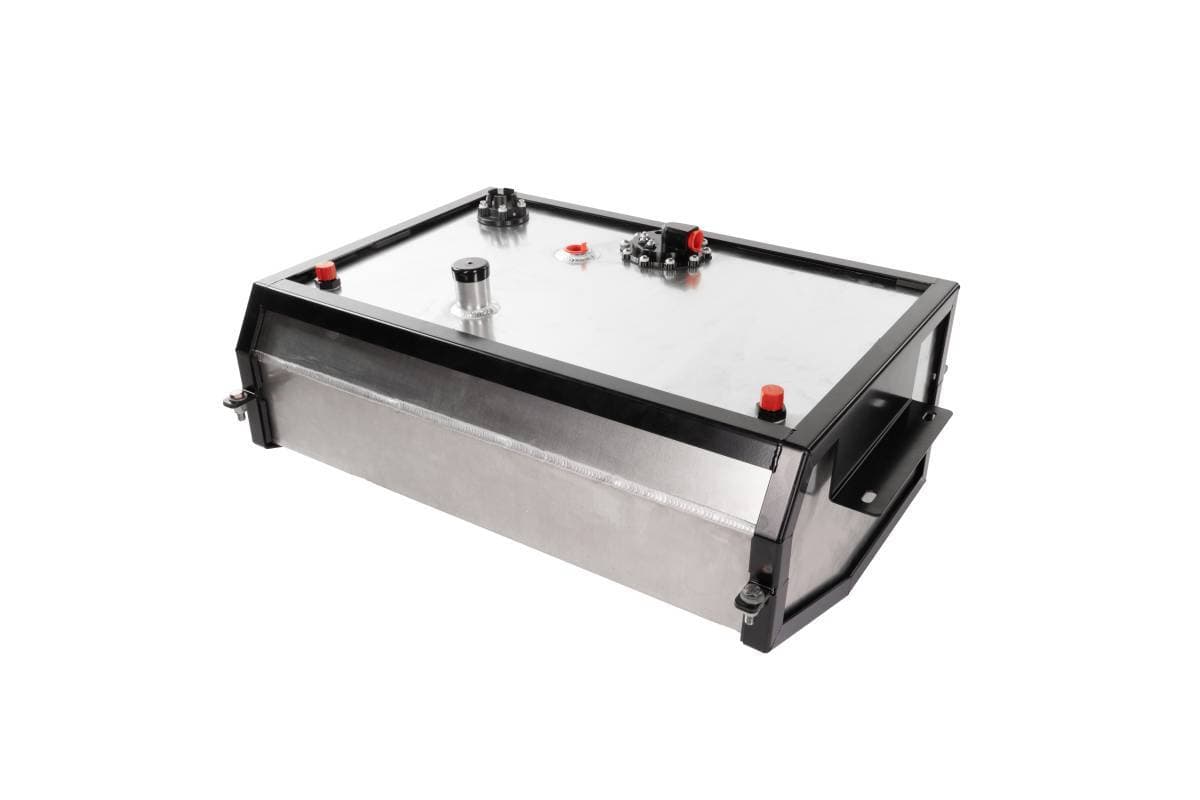

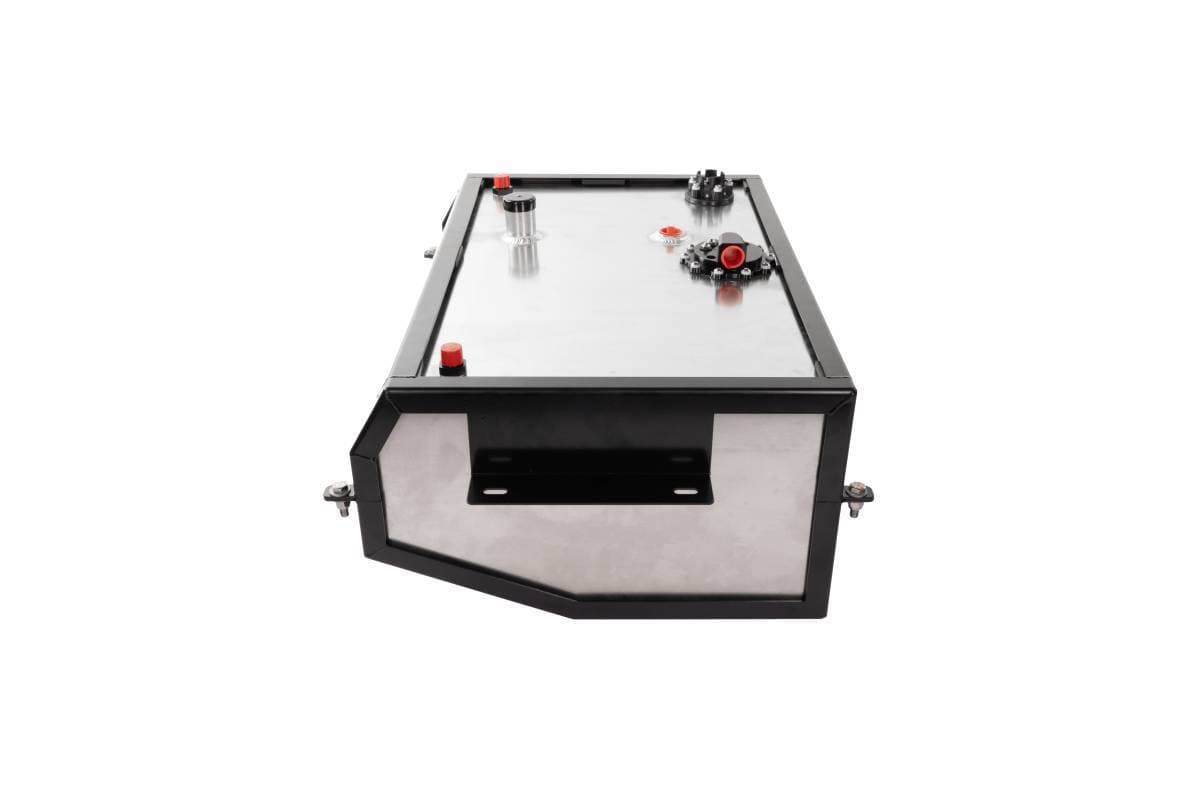

Aeromotive Fuel Cell For 67-72 Chevy C10 / 73-87 Square Body C10 with 3.5 GPM Brushless Spur Gear Fuel Pump - Rear Mount

Aeromotive Fuel Cell For 1967-1972 Chevy C10 Truck w/ 3.5L GPM Brushless Spur Gear Fuel Pump - Rear Mount

Note: relocates the fuel tank from the cab to the rear, positioned between the frame rails, to enhance weight distribution and modernize your fuel system!

*Notice if you remove the rear most crossmember it will also fit 1973-1987 square body C10 trucks!

Features:
Fabricated aluminum Fuel Cell w/ Brushless A1000 Fuel Pump
Designed to relocate the fuel tank from the cab to the rear between the frame rails
17 gallon capacity
Two-piece bracket system made of 12 gauge steel and powdered coated for durability
Two An-08 vents that are roll-over protected
Isolators rest between the cell and the brackets to minimize vibrations and noise
ORB-10 return port for smoother return flow
Easy installation

3.5 GPM Fuel Pump Power Specs:
CARB or EFI	Power Adder	Fuel	Min HP	Max HP
Fuel Injected	Forced Induction	Gas	1360	2000
Carbureted	Naturally Aspirated	E85	1064	1680
Fuel Injected	Naturally Aspirated	Gas	952	1260
Fuel Injected	Forced Induction	E85	1840	2600
Fuel Injected	Forced Induction	Gas	1520	2400
Carbureted	Forced Induction	E85	952	1400
Carbureted	Naturally Aspirated	Gas	1120	1800
Fuel Injected	Naturally Aspirated	E85	1288	1820
