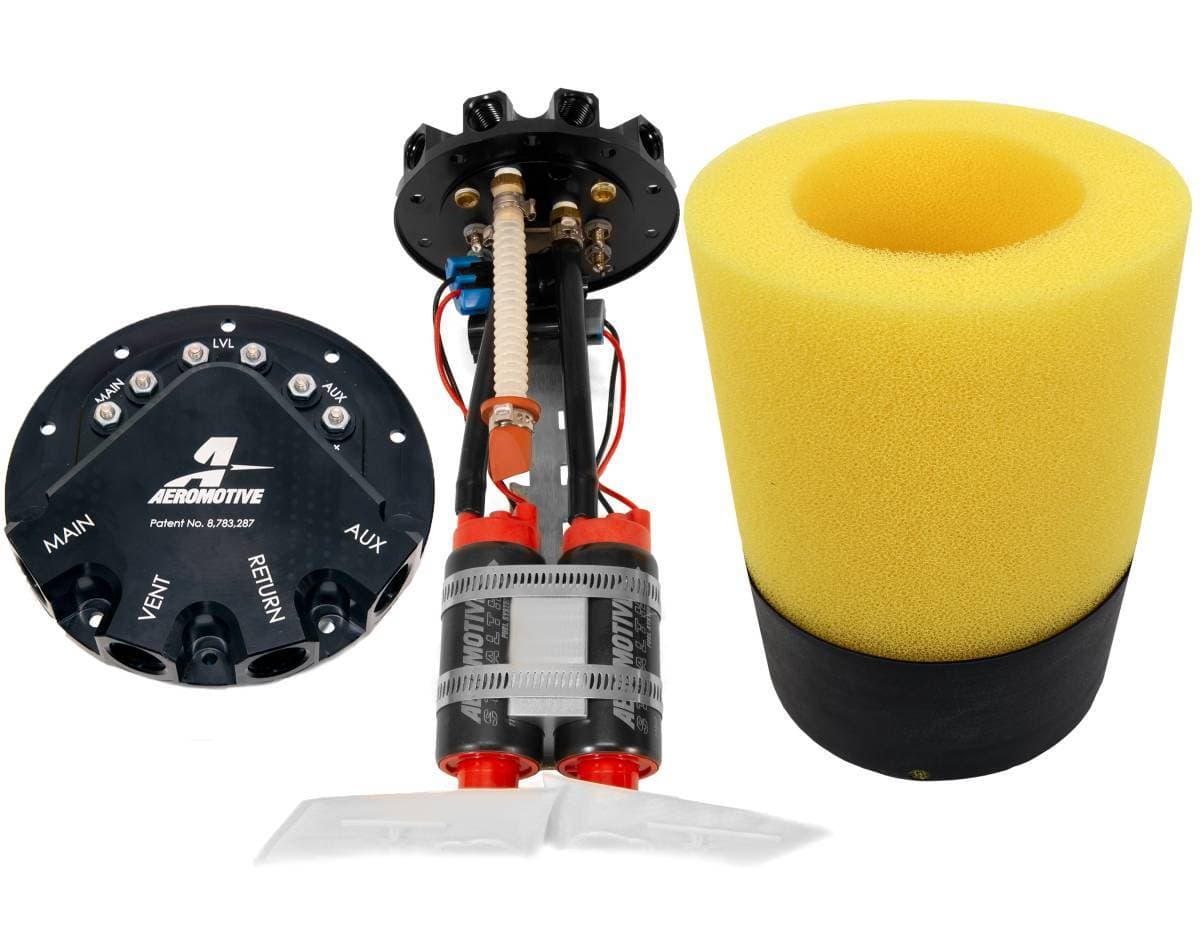

This system is designed to work in trucks equipped with the OEM plastic fuel tanks only; some of the 1999 models may still have a steel tank, which will not fit this Phantom series. The 1999-2004 models with a plastic tank for which this Phantom is designed use a smaller factory opening than the later 2005-2017 models, which have their own series of Phantom drop in kits. The smaller opening in the 1999-2004 tanks does limit the pump configurations which will fit. These tanks will accommodate several pump options including; a single 340, a dual 340, and a single 450 pump. Any other combination of more/larger pumps will not physically fit through the factory tank opening.
The Silverado and Sierra tanks have a tank depth of approximately 14.00”, while the other models are shallower with depths around 8.25”. The Phantom systems will accommodate both.
Notes: Not configured for use with the OEM, pulse-modulated-to-pressure, pump control.
Requires installation of return style fuel system including high flow AN style fuel lines, fuel filter and EFI bypass regulator with return line. Contact Aeromotive Tech Support with any questions and for more information.
Max Fuel Pump HP Output:
Carbureted - Forced Induction E85 595 HP
Carbureted - Forced Induction Gas 850 HP
Carbureted - Naturally Aspirated E85 700 HP
Carbureted - Naturally Aspirated Gas 1000 HP
Fuel Injected - Forced Induction E85 490 HP
Fuel Injected - Forced Induction Gas 700 HP
Fuel Injected - Naturally Aspirated E85 595 HP
Fuel Injected - Naturally Aspirated Gas 850 HP
