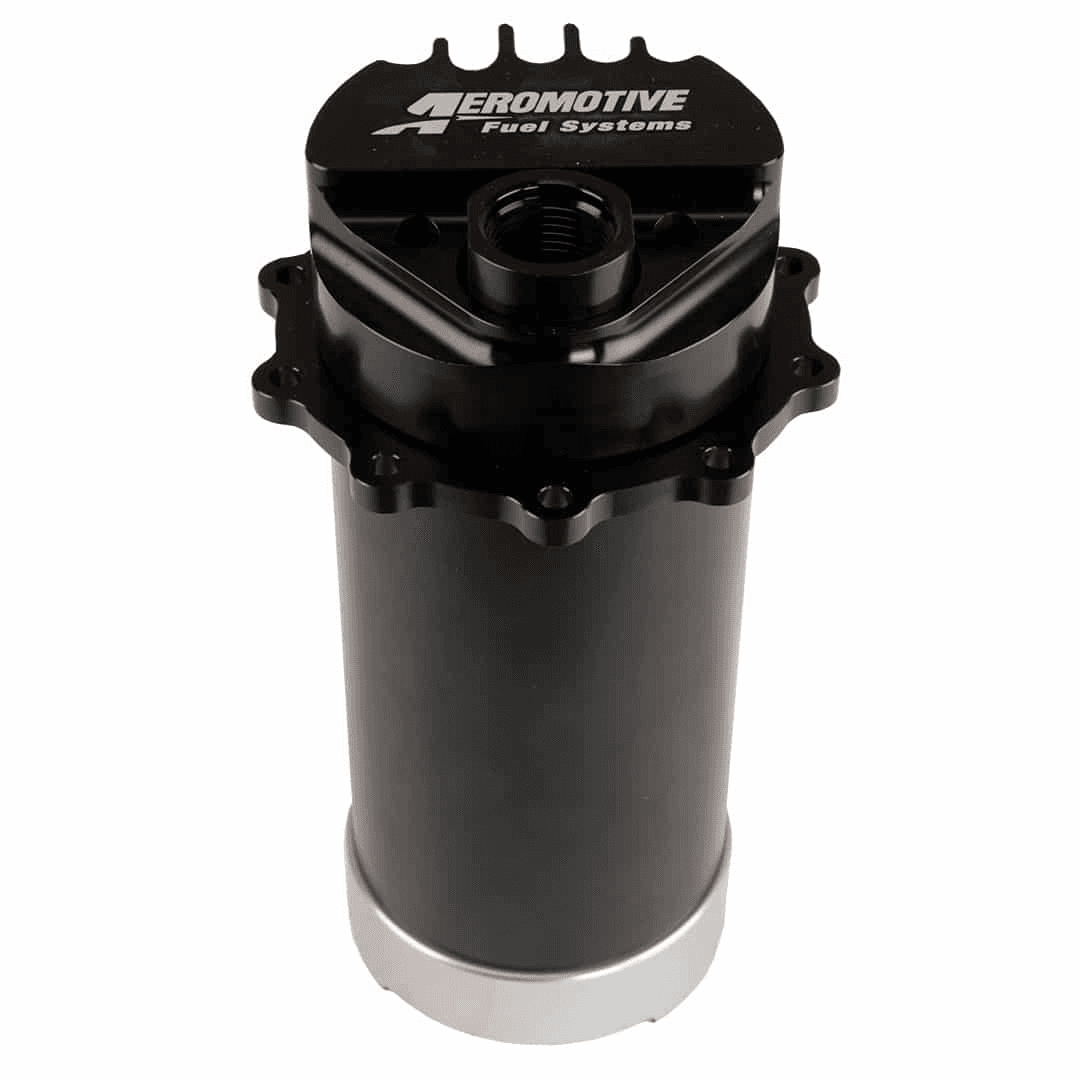

Aeromotive 5 GPM Brushless Shallow Fuel Pump with Variable Speed Controller

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Note: Must use 6.7″ Tank Depth for A1000, Eliminator, 3.5GPM, and 5.0GPM Shallow Fuel Pumps

Features:
Lighter than the traditional Pro-Series pump
Reduced current draw at higher, EFI pressures
Extended service life in methanol and ethanol
Integral spur-gear pumping mechanism
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers.

5 GPM Fuel Pump Power Specs:
CARB or EFI	Power Adder	Fuel	Min HP	Max HP
Fuel Injected	Forced Induction	Gas	1800	2700
Carbureted	Naturally Aspirated	E85	1512	2380
Fuel Injected	Naturally Aspirated	Gas	2340	3600
Fuel Injected	Forced Induction	E85	1260	1890
Fuel Injected	Forced Induction	Gas	1620	2600
Carbureted	Forced Induction	E85	1134	1820
Carbureted	Naturally Aspirated	Gas	2160	3400
Fuel Injected	Naturally Aspirated	E85	1638	2520
