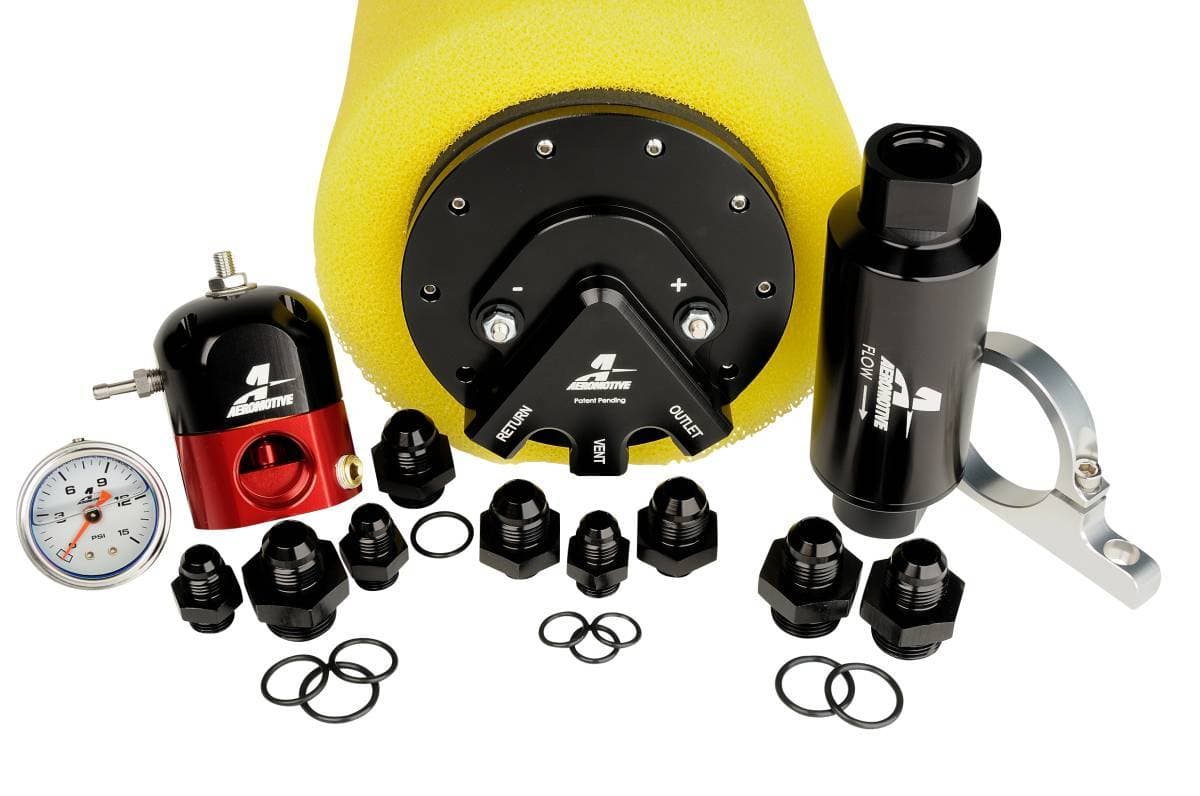

These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
This kit contains the following parts:
1ea Phantom 340
1ea Filter 10 micron Paper
1ea Filter Bracket
1ea Regulator, ByPass, Carb.

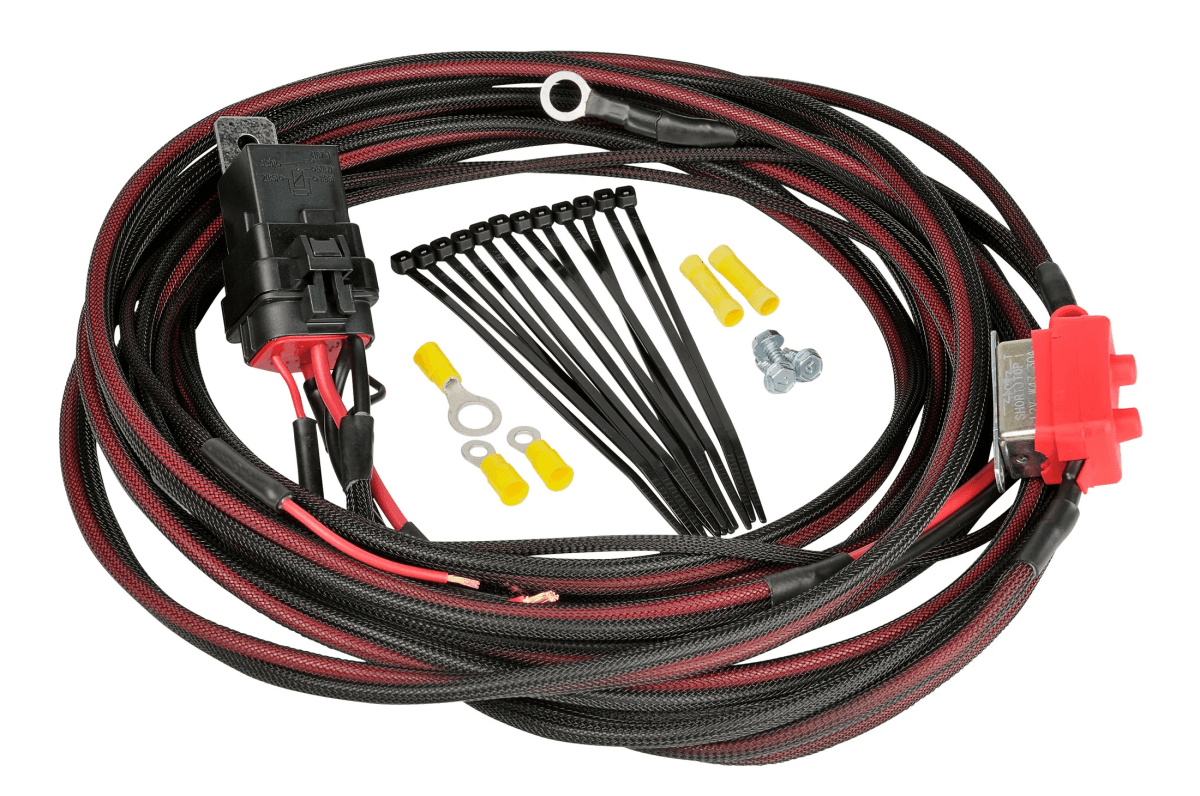

1ea Fuel Pump Wiring Kit.
3 ea AN-06 ORB to AN-06 flare
1 ea AN-08 ORB to AN-08 flare
3 ea AN-10 ORB to AN-08 flare
1ea AN-06 Port Plug
2ea AN-06 ORB to AN-08 flare
1 ea 0-15 PSI Pressure Gauge
340 LPH Fuel Pump Power Specs: |
CARB or EFI |
Power Adder |
Fuel |
Min HP |
Max HP |
Carbureted |
Forced Induction |
Gas |
400 |
850 |
Carbureted |
Naturally Aspirated |
E85 |
325 |
700 |
Carbureted |
Naturally Aspirated |
Gas |
500 |
1000 |
Carbureted |
Forced Induction |
E85 |
220 |
595 |
