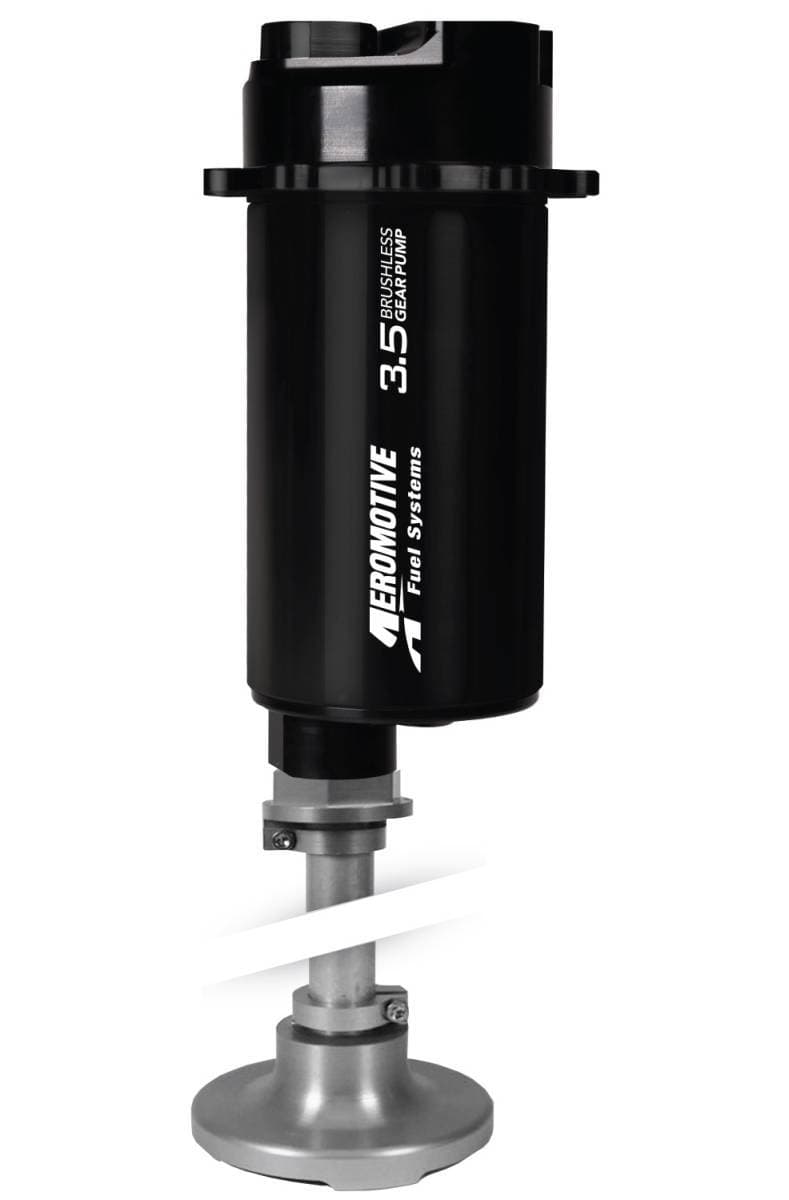

Features:
Lighter than the traditional Pro-Series pump.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers.
| 3.5 GPM Fuel Pump Power Specs: | ||||
| CARB or EFI | Power Adder | Fuel | Min HP | Max HP |
| Fuel Injected | Forced Induction | Gas | 1360 | 2000 |
| Carbureted | Naturally Aspirated | E85 | 1064 | 1680 |
| Fuel Injected | Naturally Aspirated | Gas | 952 | 1260 |
| Fuel Injected | Forced Induction | E85 | 1840 | 2600 |
| Fuel Injected | Forced Induction | Gas | 1520 | 2400 |
| Carbureted | Forced Induction | E85 | 952 | 1400 |
| Carbureted | Naturally Aspirated | Gas | 1120 | 1800 |
| Fuel Injected | Naturally Aspirated | E85 | 1288 | 1820 |
