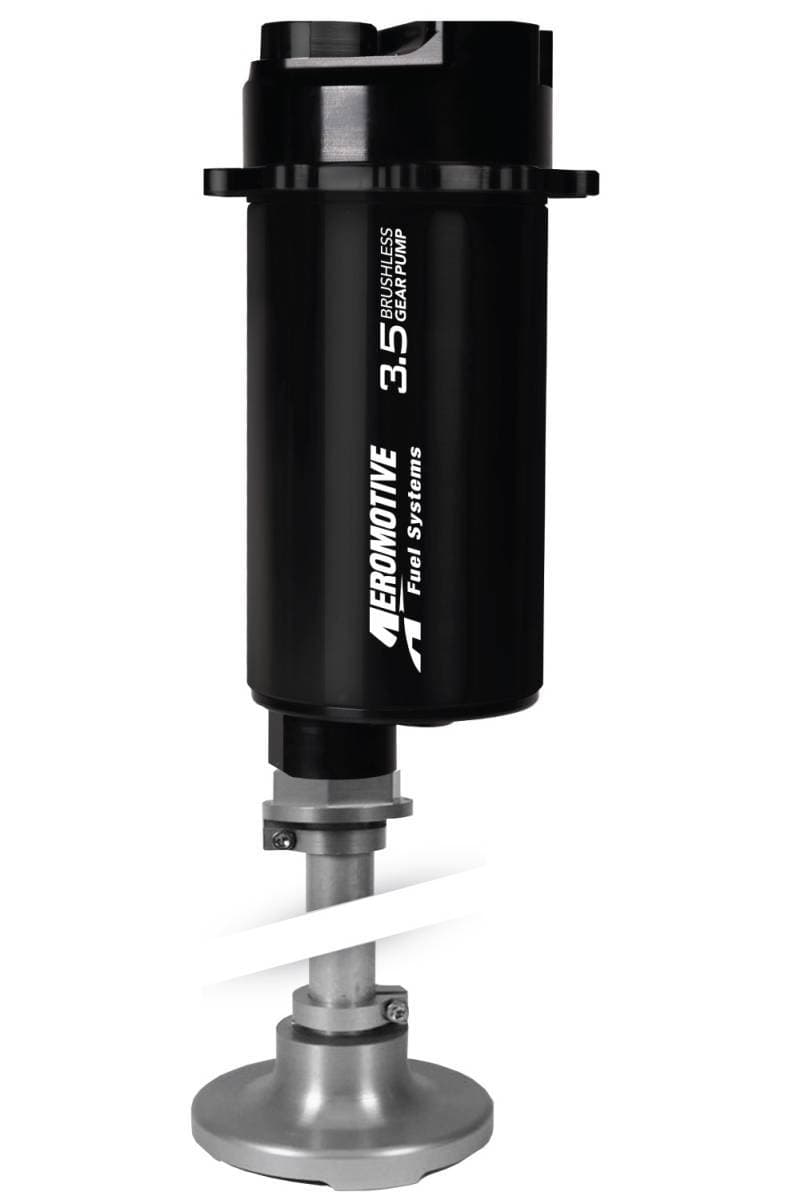

Aeromotive 3.5 GPM Brushless In-Tank Fuel Pump

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The 3.5 Brushless Gear pump provides the Pro-Series Fuel Pump performance the world has come to trust and depend on, now available with the latest Spur-Gear pumping mechanism and brushless-motor technology. Built for up to 90 psi of sustained pressure, this new pump supports Pro-Series flow at higher pressures with minimal drop in flow. This new brushless spur-gear pump is able to move more fuel and sustain higher pressures without failure.

Features:
Lighter than the traditional Pro-Series pump.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
ORB-10 outlet port.
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers.

3.5 GPM Fuel Pump Power Specs:
CARB or EFI	Power Adder	Fuel	Min HP	Max HP
Fuel Injected	Forced Induction	Gas	1360	2000
Carbureted	Naturally Aspirated	E85	1064	1680
Fuel Injected	Naturally Aspirated	Gas	952	1260
Fuel Injected	Forced Induction	E85	1840	2600
Fuel Injected	Forced Induction	Gas	1520	2400
Carbureted	Forced Induction	E85	952	1400
Carbureted	Naturally Aspirated	Gas	1120	1800
Fuel Injected	Naturally Aspirated	E85	1288	1820
