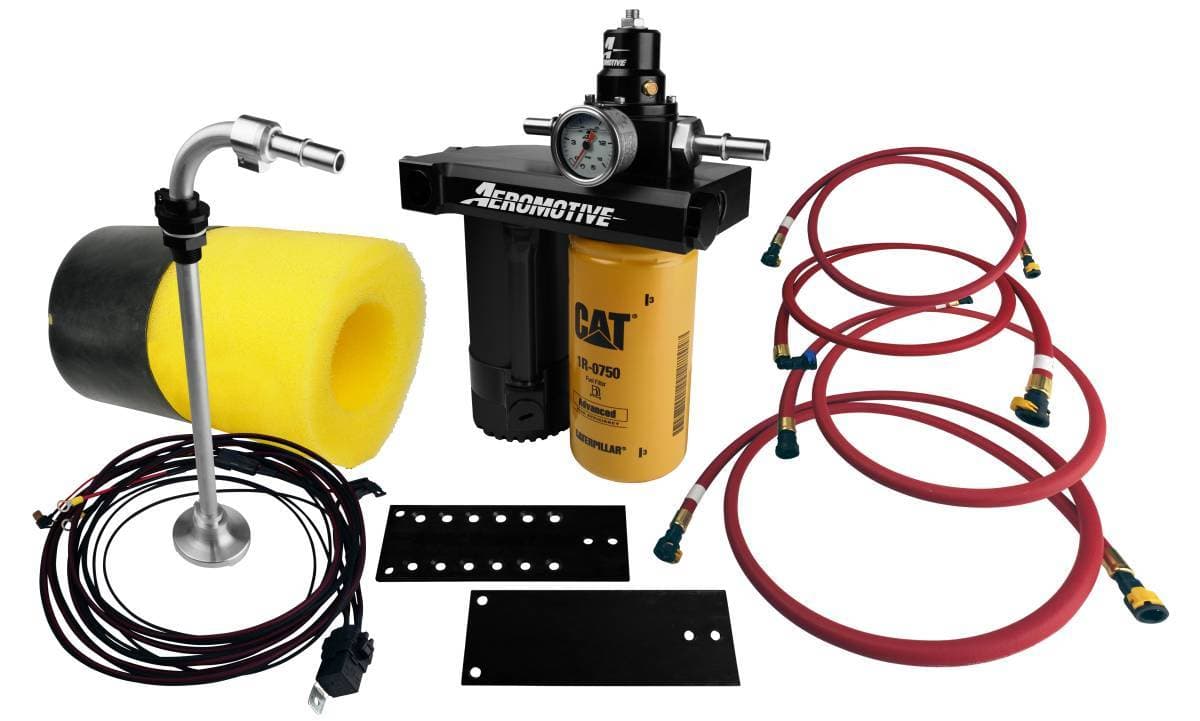

Aeromotive 2008-2010 6.4L Ford Powerstroke 230 GPM Complete Fuel System

The Aeromotive diesel lift pump was developed to solve some key issues in the diesel lift pump market, most notably the ¼ tank issue, the pressure control issue, and motor shaft seal failures. Aeromotive opted for a flow-thru design to solve the shaft seal failure, which means there is no shaft seal to fail or leak.

Kit Includes:
1 Fuel Pump Assembly (130gph)
1 1/2" Return Hose Assembly
1 1/2" Feed Hose Assembly
1 1/2" Pressure hose from factory fuel pump
1 5/8" Suction Hose Assembly
1 In-tank Return Assembly
1 Boxed, Pickup Tube Assembly
1 Wiring Harness
1 ea Pump Power Harness
1 ea Frame Bracket 1
1 ea Frame Bracket 2
1 ea 3?4” Pickup Tube
1 ea Bottom Plate Baffle
2 ea 2” Bracket Spacers
3 ea P/N 15129 AN10 to 1?2” J2044 Quick Connect
1 ea P/N 15130 AN12 to 5/8” J2044 Quick Connect
1 ea 15632 0-15psi, 1/8” npt, Fuel Pressure Gauge
1 ea Basket
1 ea Foam Core
3 ea 3/8-16 Zinc Plated Jam nut
2 ea AN-10 o-ring
1 ea AN-12 o-ring
3 ea 3/8-16 x 4” Hex Head Bolt
2 ea 3/8-16 x 3” Tapered Socket Cap Screw
12 ea Tie-Wraps
3 ea Zinc Plated Lock Washer
