In the event of failure or a no-run condition, the valve will open and allow fuel to bypass the pump. This allows the vehicle to continue to run and get you to your destination, eliminating tow bills. With a brushless motor design, Aeromotive has increased the performance and longevity you would expect from a diesel lift pump. A single filter model simplifies the design and reduces maintenance cost. Our diesel pump includes the Caterpillar 1R-0750 2-micron filter to catch the smallest particulates. With a standard 1-14 filter head thread, the end user can use their filter of choice. their filter of choice.

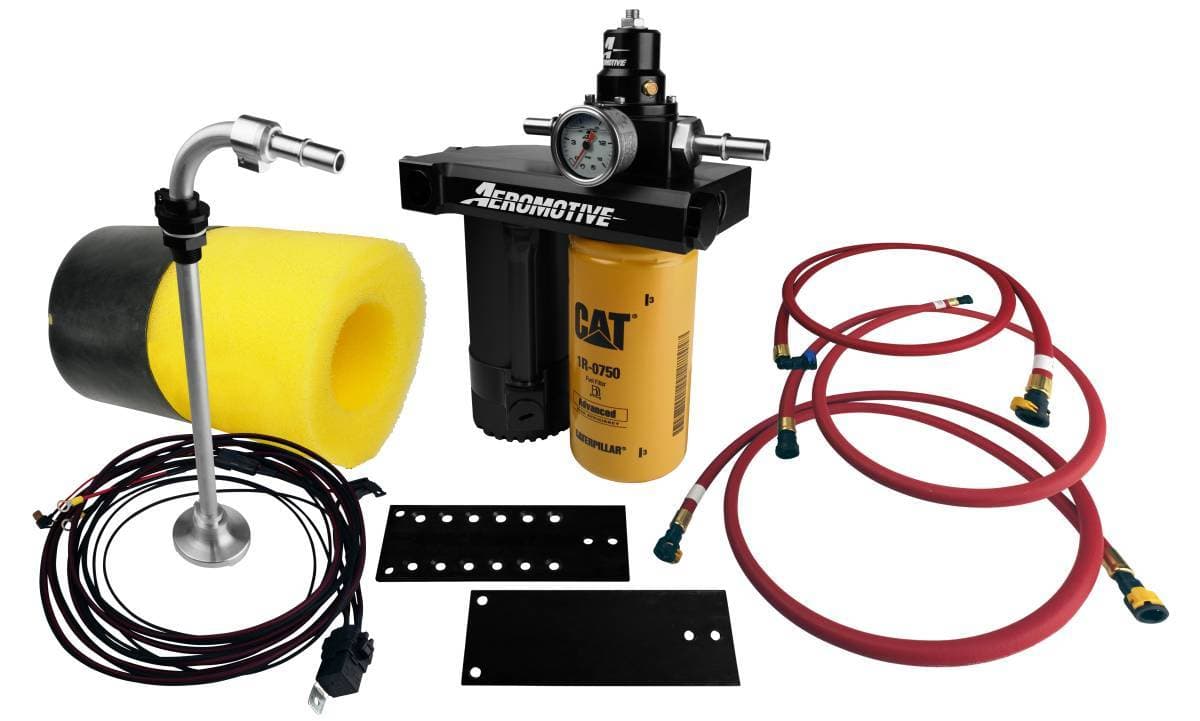

Kit Includes:
Fuel Pump Assembly (130gph)
1/2" Return Hose Assembly
1/2" Feed Hose Assembly
5/8" Suction Hose Assembly
In tank Return Assembly
Boxed, Pickup Tube Assembly
Wiring Harness
Frame Bracket 1
Frame Bracket 2
3/4" Pickup Tube
Bottom Plate Baffle
2" Bracket Spacers
1/2" Fuel Line Cap
Pump Power Harness
P/N 15129 AN10 to 1/2" J2044 Quick Connect
P/N 15130 AN12 to 5/8" J2044 Quick Connect
15632 0-15psi, 1/8"-npt, Fuel Pressure Gauge
Basket
Foam Core
3 - 3/8-16 Zinc Plated Jam nut
2 - AN-10 o-ring
AN-12 o-ring
3 - 3/8-16 x 4 Hex Head Bolt
2 - 3/8-16 x 3 Tapered Socket Cap Screw
12 - Tie-Wraps
3 - Zinc Plated Lock Washer
