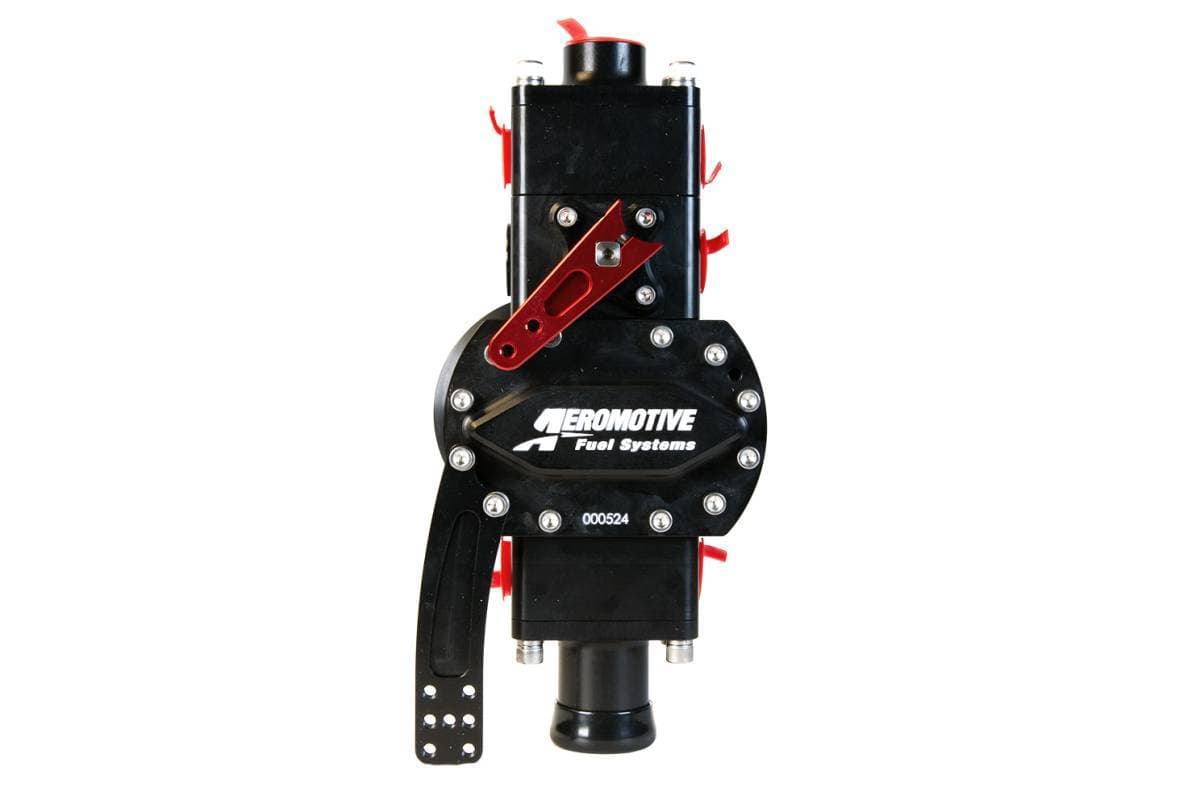

Aeromotive 16.5 GPM Fuel Pump with Shut Off Valve 2x AN-08 Distribution Blocks - 1-1/4" Inlet, -10 AN Outlet (.775 Gear Set)

The Aeromotive Spur Gear Pump is the largest mechanical pump in the Aeromotive family, and is available in flow ratings from 16 GPM to 32 GPM, with a variety of inlet/outlet attachments, and three different sized distribution blocks to ensure proper plumbing. Mounting options include a 3 or 4 bolt flange, and a V-band adapter. Pumps are available with a 3/8” or 7/16” shaft, and a hard coat anodized aluminum or steel body. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Seal options include Gas/Alcohol or Nitro, and NHRA Certifiable part numbers are available.

What's included in the box?
1- 16.5 GPM Spur Gear Fuel Pump w/aluminum body, 3/8” shaft for Gas/Alcohol applications
1 - 1.25” Hose adapter inlet
1 - AN-10 Port
1 - V-Band Adapter
1 - V-Band
2 - AN-08 Distribution block
1 - Left hand AN-8 shut off valve

5 GPM Fuel Pump Power Specs:
CARB or EFI	Power Adder	Fuel	Min HP	Max HP
Fuel Injected	Forced Induction	Gas	1800	2700
Carbureted	Naturally Aspirated	E85	1512	2380
Fuel Injected	Naturally Aspirated	Gas	2340	3600
Fuel Injected	Forced Induction	E85	1260	1890
Fuel Injected	Forced Induction	Gas	1620	2600
Carbureted	Forced Induction	E85	1134	1820
Carbureted	Naturally Aspirated	Gas	2160	3400
Fuel Injected	Naturally Aspirated	E85	1638	2520
