A&A Corvette C5/C6 Secondary Belt Drive System - Dry Sump

FITS C5 AND C6 CORVETTE

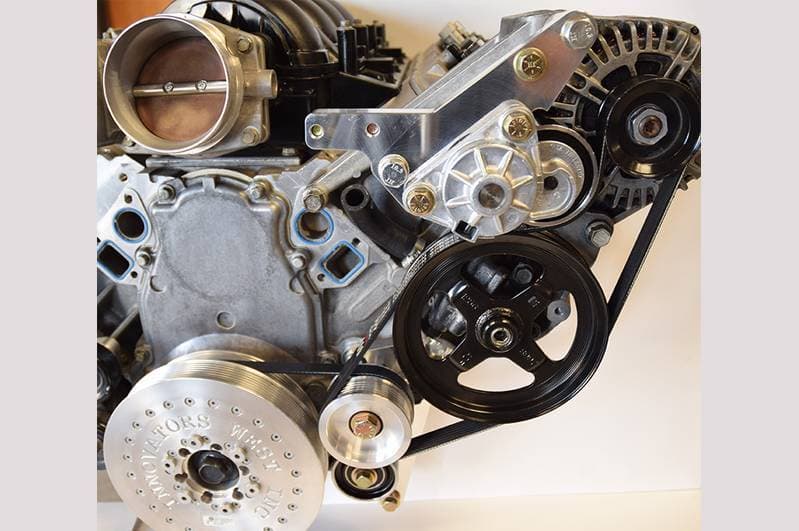

The A&A Secondary Drive is unique in that it does NOT drive the accessories via the air conditioning belt like other systems. The accessory drive shaft pulley is driven by its own dedicated belt. This allows full belt wrap around the crankshaft pulley as well as the accessory drive shaft pulley and the ability to tension this belt separately. This eliminates accessory belt slip that plagues other systems. Our system also utilizes a spring tensioner on the alternator/power steering belt which allows proper belt wrap and tension.

Design testing showed the torque needed to slip the accessory drive shaft belt was nearly TRIPLE that of other designs. This eliminates voltage loss at high RPM from slipping, as well as belt squeal in slow corners with the A/C on.

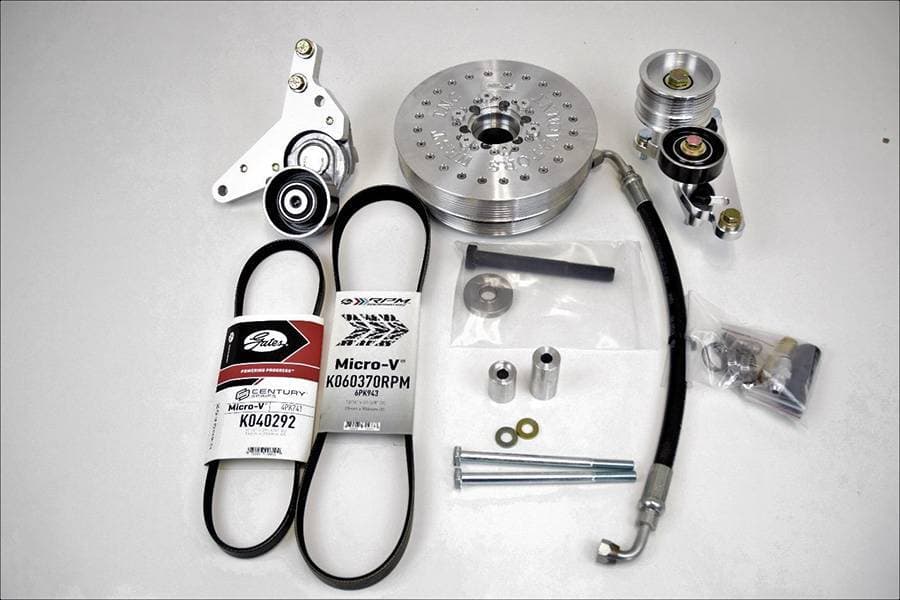

This kit includes their proprietary 8 rib sfi approved 10% overdrive balancer, all belts, hoses, pulleys and tensioners needed.  (Will not work with stock, or standard innovators west or ati balancer)

Using their Secondary Drive allows the use of a much shorter belt to drive the supercharger which eliminates stretch and belt whip. This is the ultimate belt drive system for street driven C5 and C6 Corvettes as well as dedicated race cars with or without A/C.

Requires modification of the stock alternator / power steering bracket
