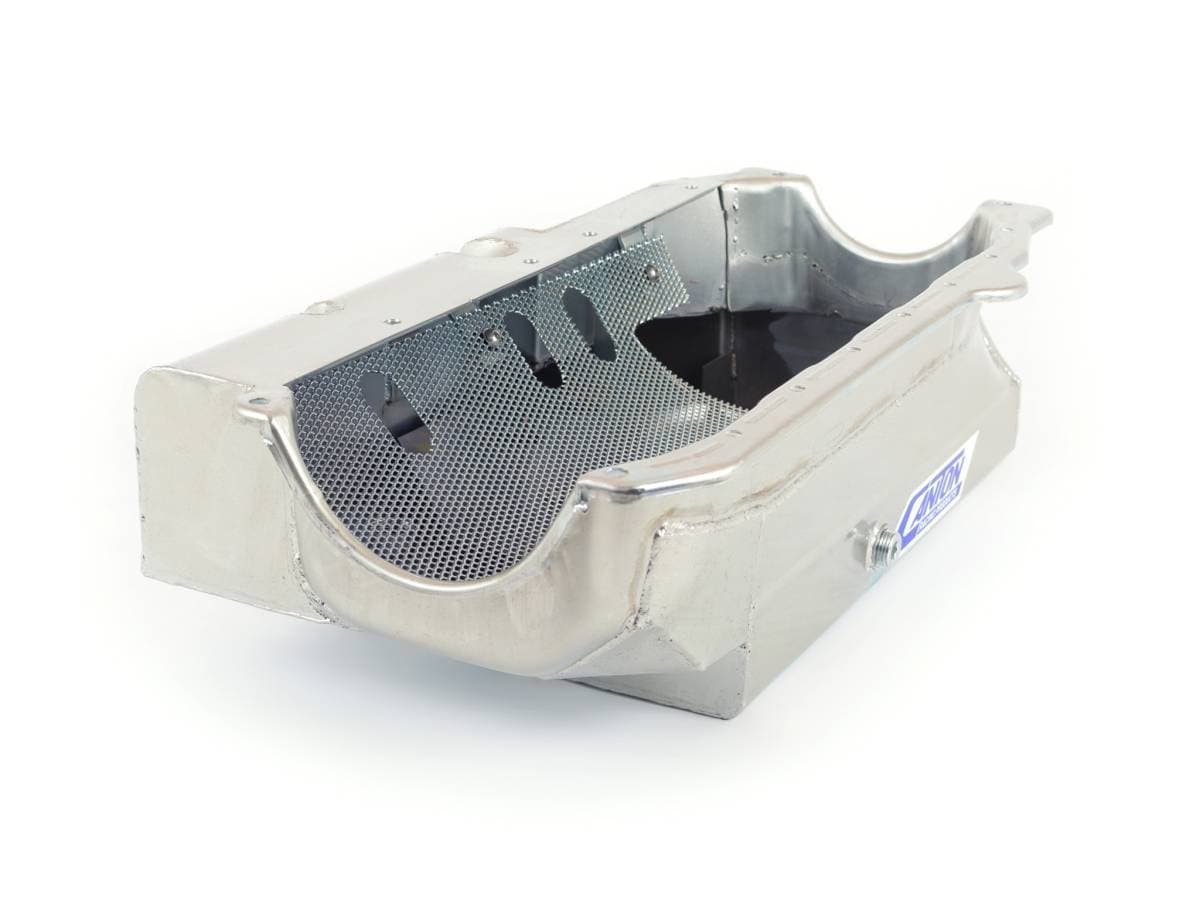

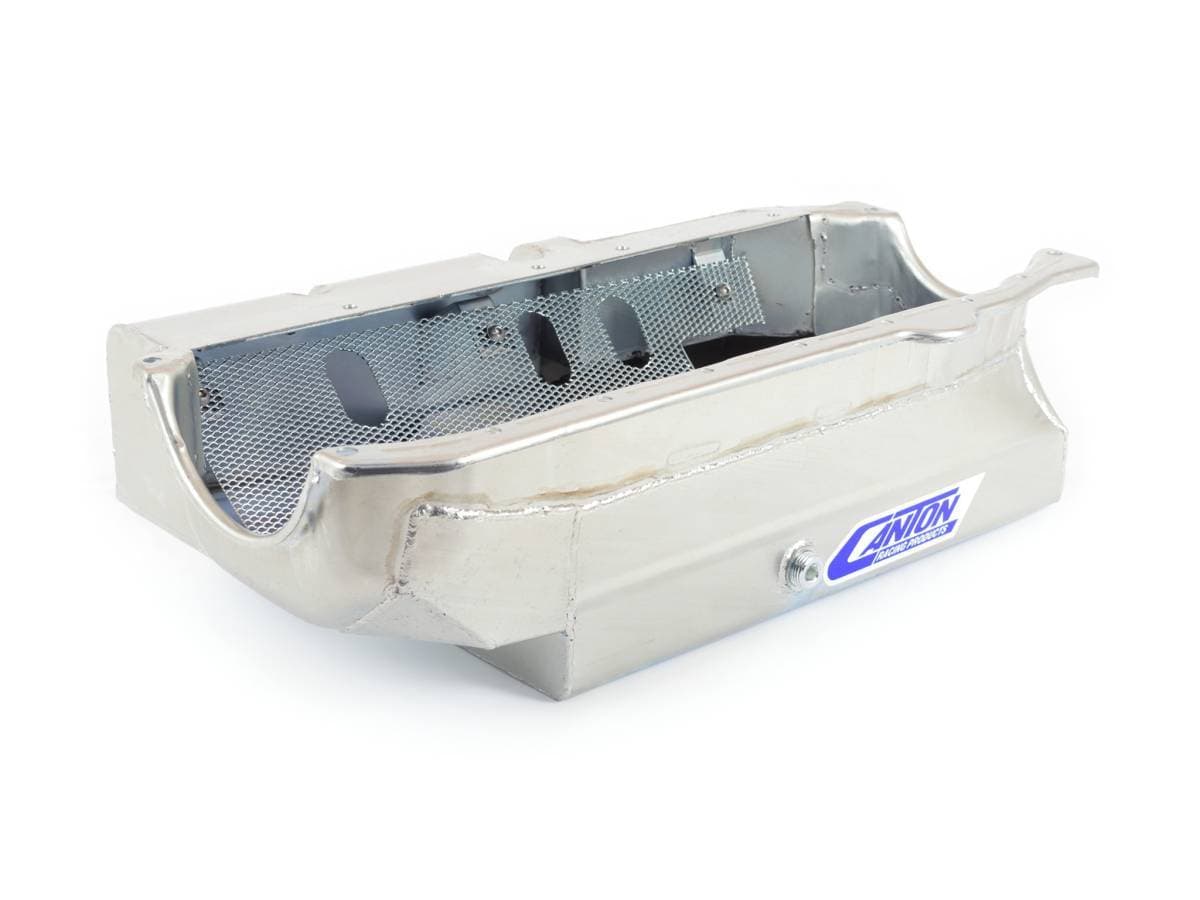

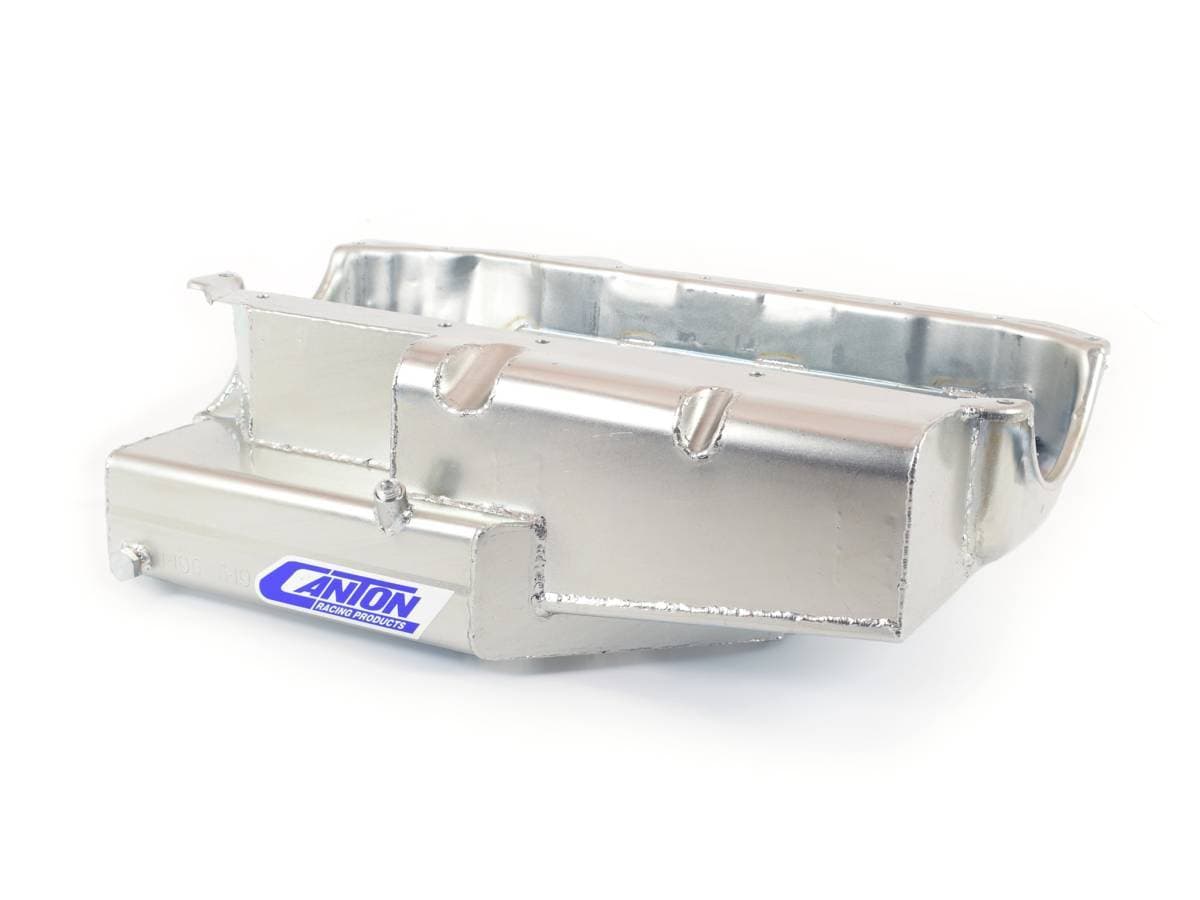

1985-Earlier SBC Shallow Open Chassis Pro Wet Sump Canton Race Oil Pan

This open chassis shallow "L" style steel wet sump is for pre-1985 Small Block Chevys. The pan is designed for applications requiring extra ground clearance and with chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models).

Note: Requires offset aftermarket starter and a 153 or 168 tooth flywheel. 20-914 Pro Louvered Windage Tray Upgrade Required for Dirt Racing. Requires Canton Pickup Part # 20-036, 20-031 or 20-032 Canton Pickup*

Features: 1985-Earlier Small Block Chevys, The pan is designed for applications requiring extra ground clearance and with chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models).

Style: Designed for 1985-Earlier, this pan is 6" deep so it fits well in a variety of chassis where low ground clearance is an issue.

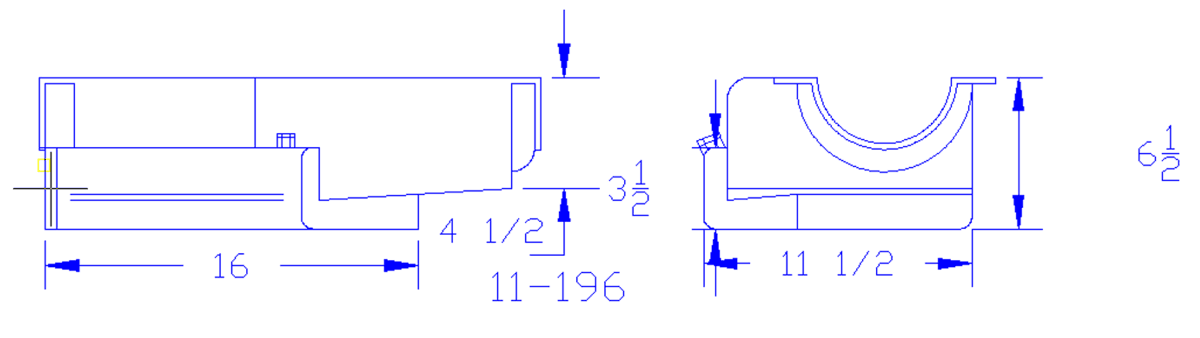

Size: 16" long, 6-1/2" deep wet sump with an 8 quart system capacity.

Oil Pan Part #: 11-196 for 1985-Earlier Small Block Chevy Engines.

Oil Pan Features:
8 qt System Capacity
3.875" Stroke Clearance
Six Trap Door Baffles & Directional Oil Runners
Pro Style Oil Recovery Pouch
Bolt in Slosh Baffle

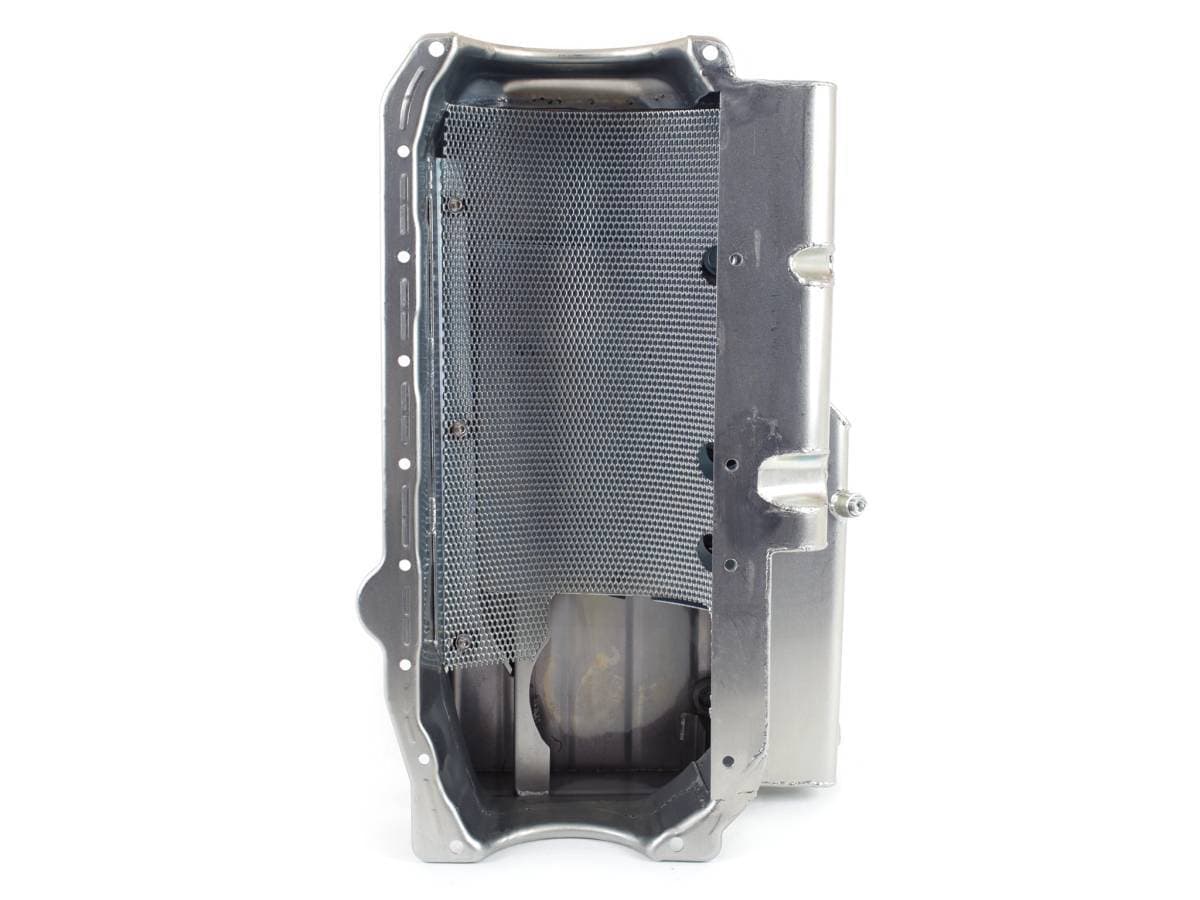

Built in Screen Windage Tray
1/2” NPT Temperature Bung
Provision for our Pan Mounted Dipstick
Magnetic Drain Plug

Recommended Accessories:

Oil Pump Pickups:
PART #: 20-036 - Pickup for SBC Standard Volume Pump M55
PART #: 20-031 - Pickup for Small Block High Volume Pump M55HV
PART #: 20-032 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet

Gaskets:
PART #: 88-100 – SBC Pre ’85 Oil Pan Gasket

Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
