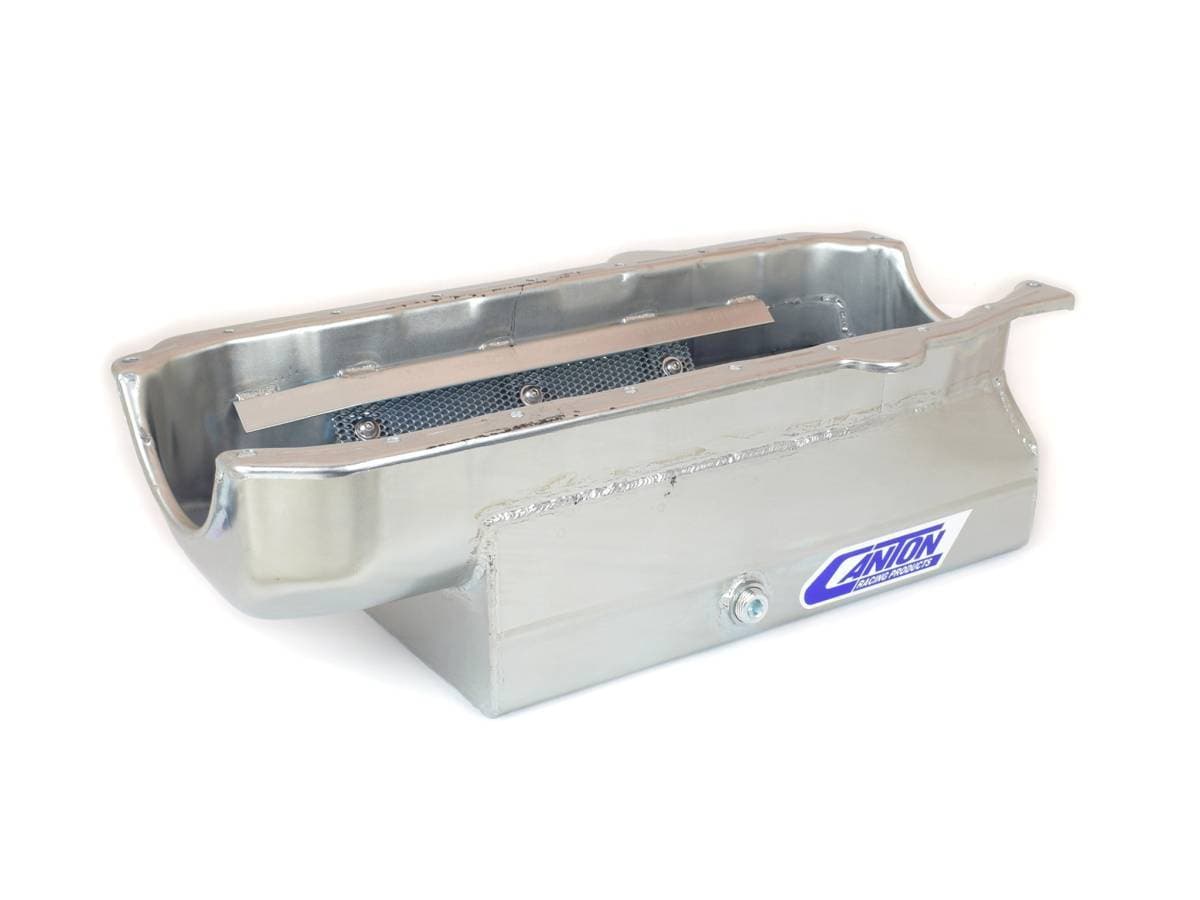

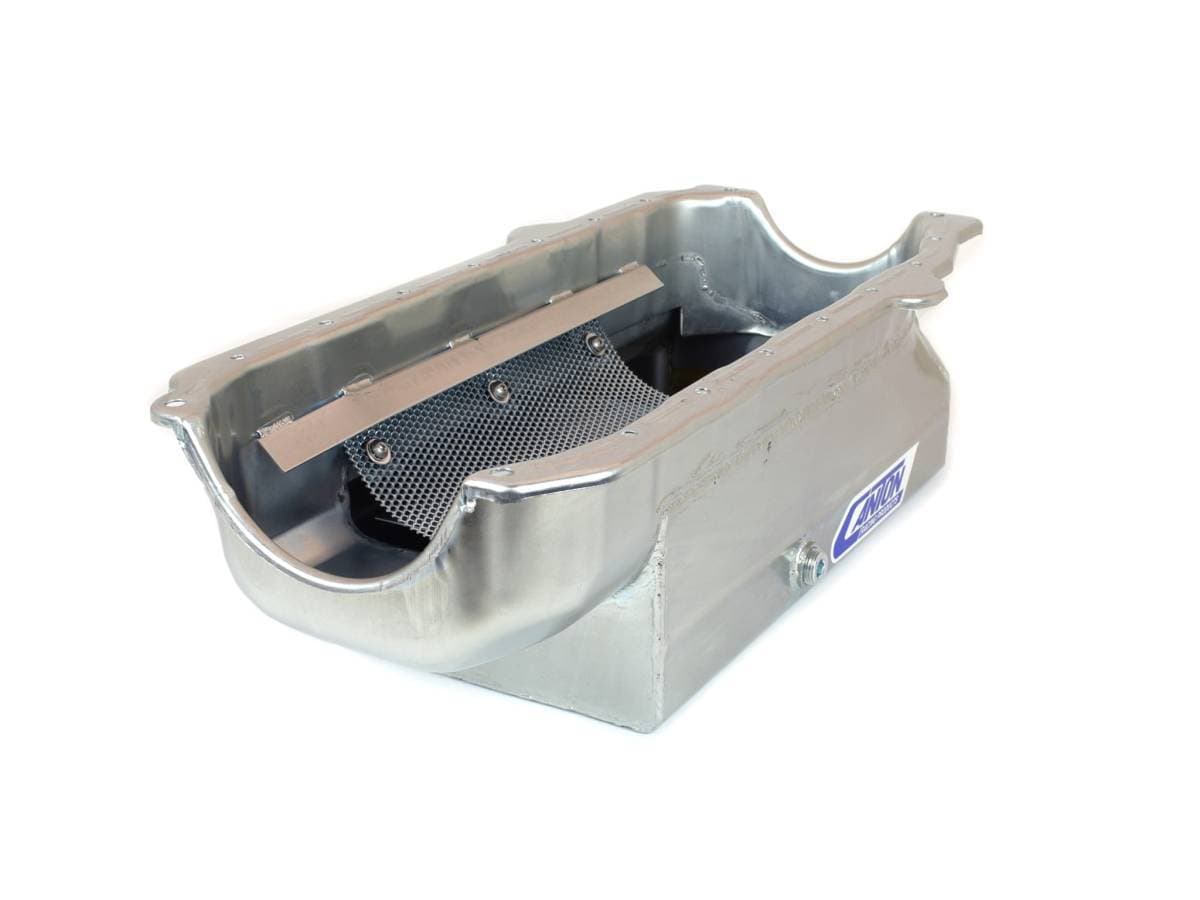

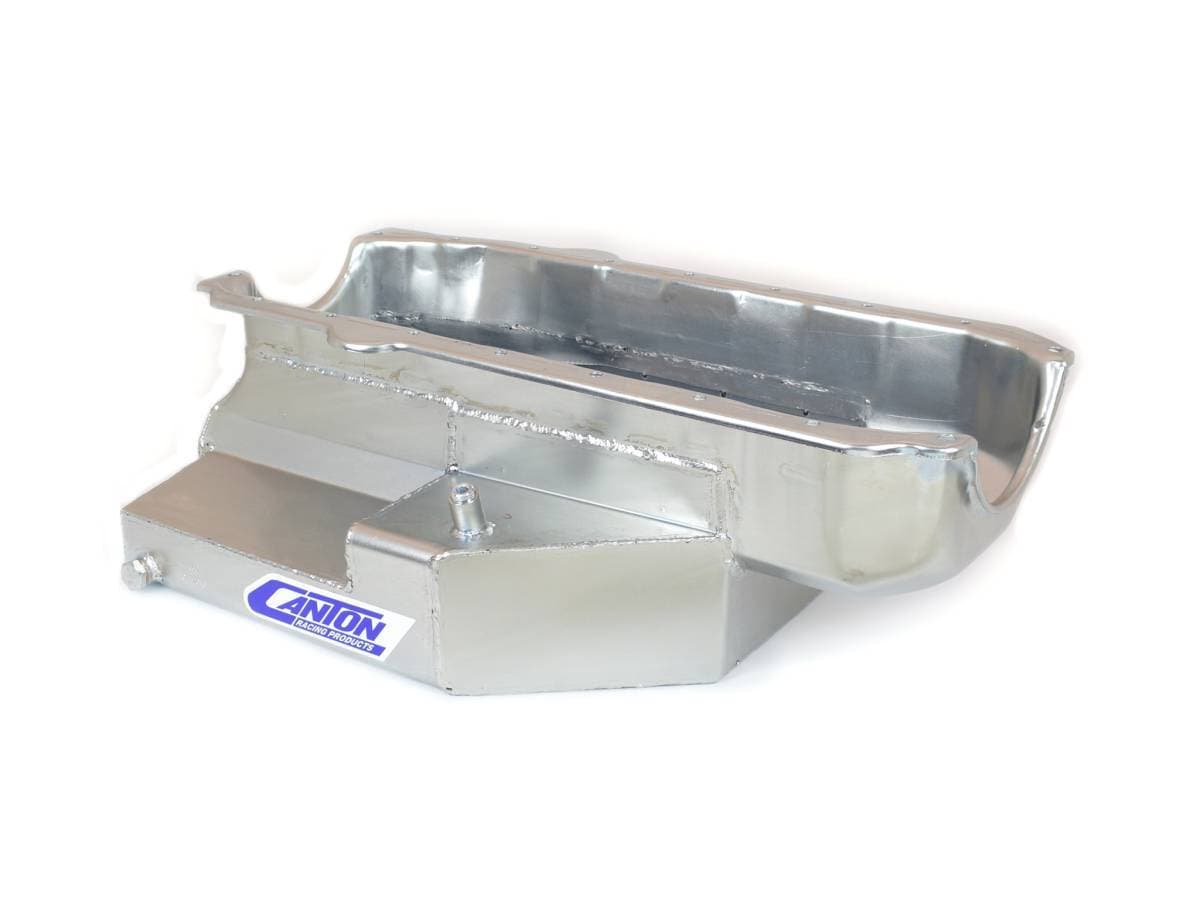

Features: 1985-Earlier Small Block Chevys with left side dipstick, It is designed for Chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models)
Style: Designed for 1985-Earlier, this pan is 7" deep so it fits well in a variety of chassis where low ground clearance is an issue.

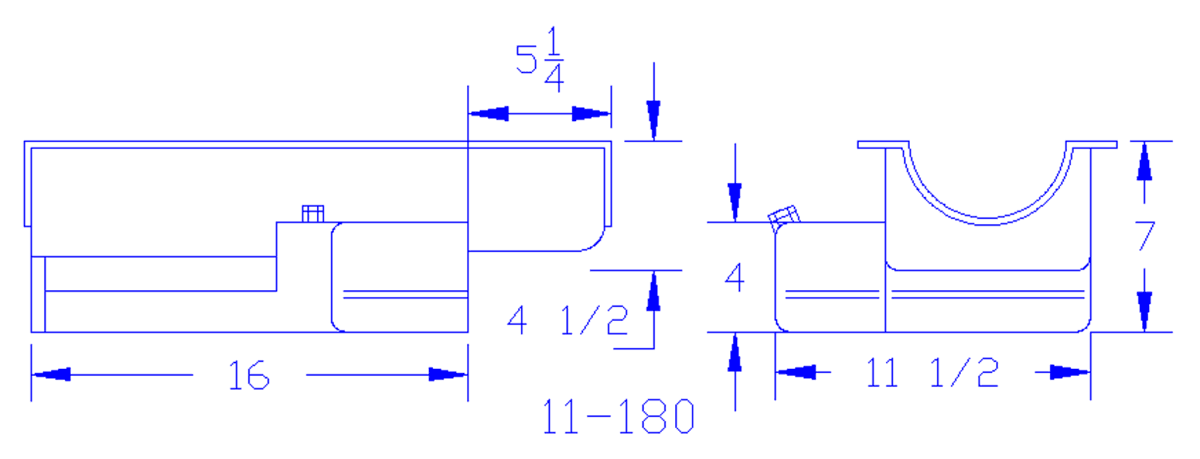

Size: 11-1/2" wide, 16" long 7" deep wet sump, and a 9 quart system capacity
Oil Pan Part #: 11-180 for 1985-Earlier Small Block Chevy Engines.
Oil Pan Features:
9 qt System Capacity
3.875" Stroke Clearance

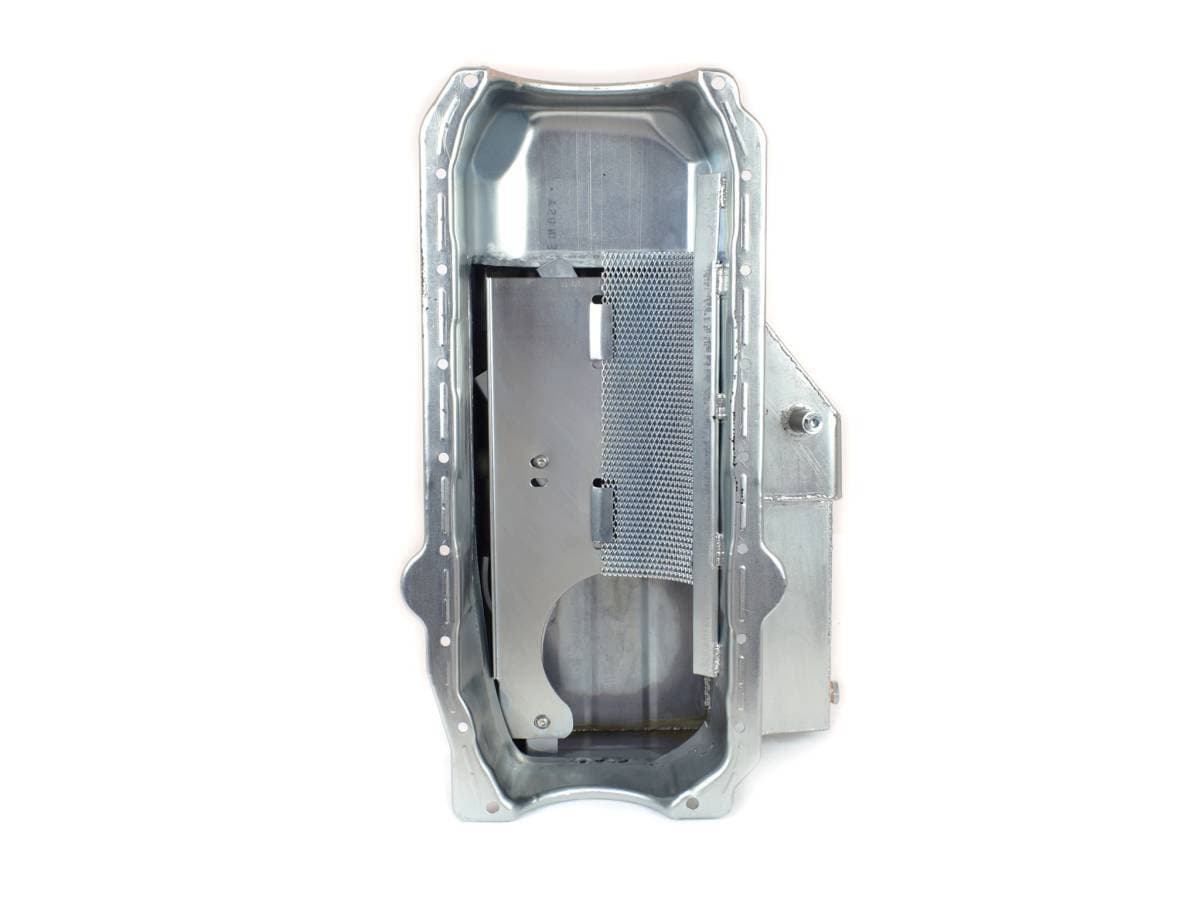

Six Trap Door Baffles & Three Runners
Crank Scraper
Bolt in Screen Windage Tray
1/2” NPT Temperature Bung
Provision for our Pan Mounted Dipstick
Magnetic Drain Plug
Recommended Accessories:
Oil Pump Pickups:
PART #: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
PART #: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
PART #: 20-070 - Pickup for Small Block High Volume Pumps M55HV
PART #: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
PART #: 20-077 - Press In Pickup for M10552 & M10555 Pump
PART #: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
PART #: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
Oil Pan Studs:
PART #: 22-300 - SBC Oil Pan Stud Kit
Gaskets:
PART #: 88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket
PART #: 88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket
Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
