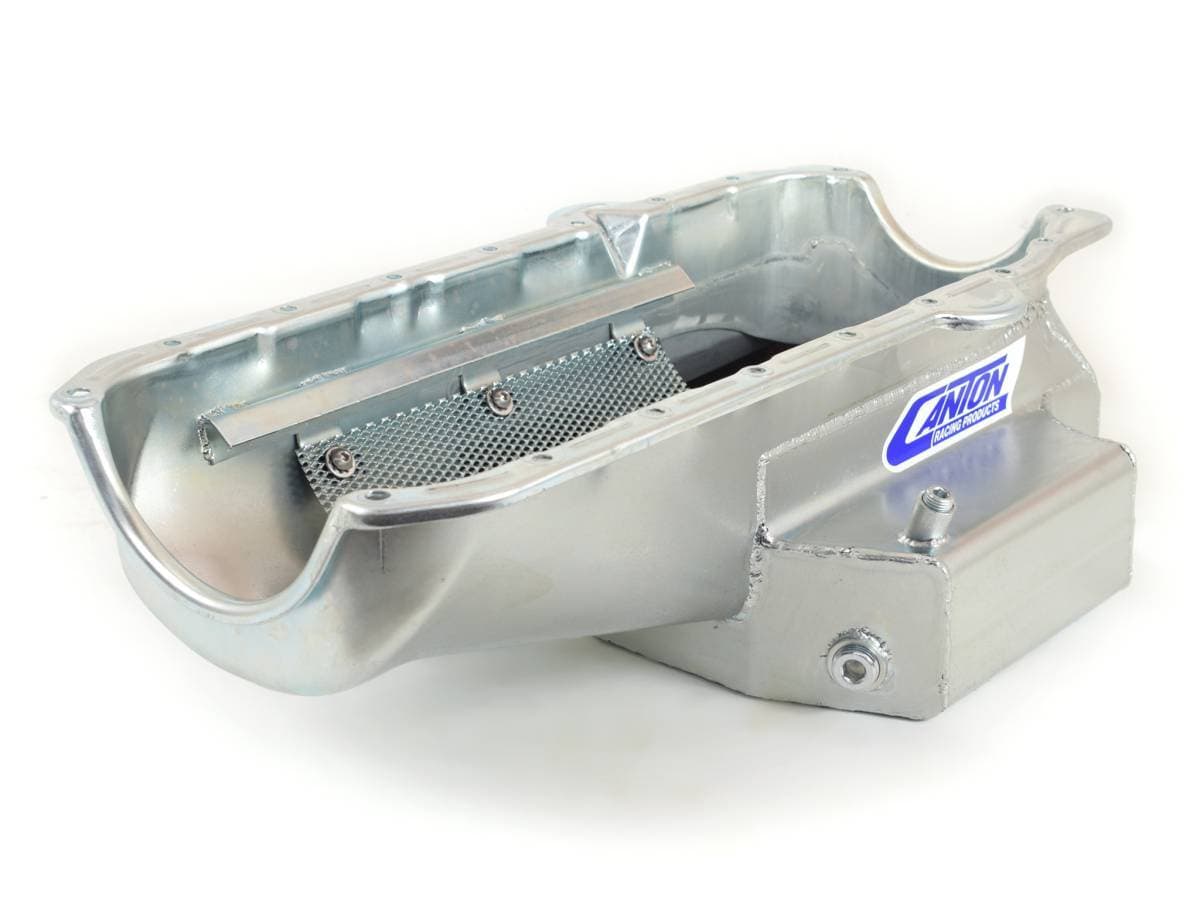

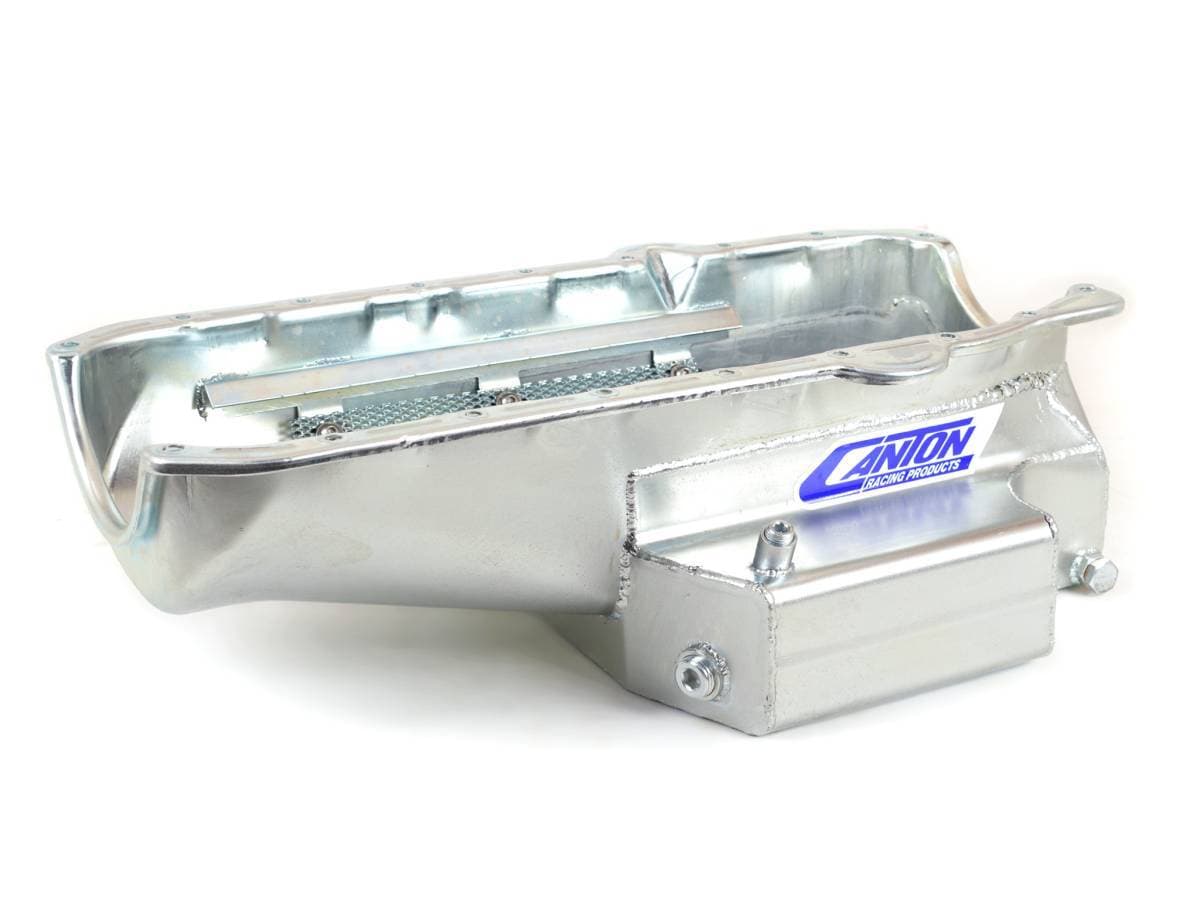

1980-1985 Small Block Chevy Shallow Circle Track 12" Long Sump Canton Race Oil Pan

This Competition wet sump is for '80-'85 Small Block Chevys with right side dipstick. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends.

Note: Requires Canton Pickup Part # 20-031 or 20-032 Canton Pickup*

Features: 1980-1985 Small Block Chevys with right side dipstick, 3.75 Stroke

Style: Designed for 1980-1985, this pan is 6-1/2" deep so it fits well in a variety of chassis where low ground clearance is an issue.

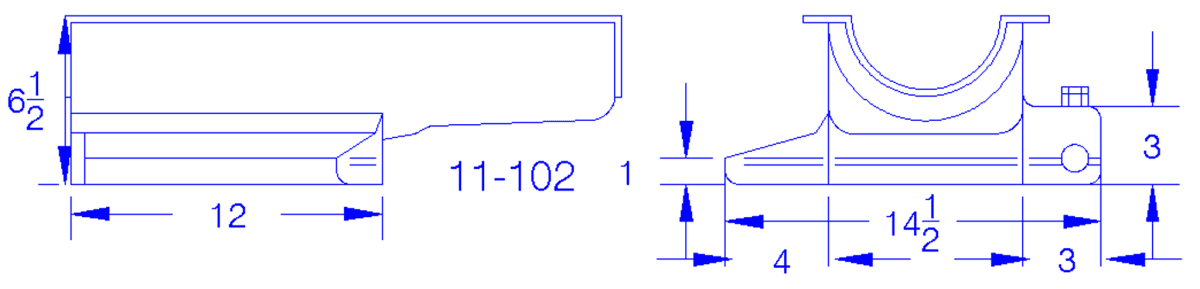

Size: 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity.

Oil Pan Part #: 11-102M for 1980-1985 Small Block Chevy Engines.

Oil Pan Features:
7 qt System Capacity
3.75" Stroke Clearance
Six Trap Door Baffles & Three Runners
Crank Scraper
Bolt in Slosh Baffle
Built in Windage Tray
1/2" NPT Temperature Bung
Provison for our Pan Mounted Dipstick
Magnetic Drain Plug

Recommended Accessories:

Oil Pump Pickups:
PART #: 20-030 - Pickup for Small Block Standard Volume Pumps M55 & M55A
PART #: 20-031 - Pickup for Small Block High Volume Pumps M55HV
PART #: 20-032 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube

Gaskets:
PART #: 88-100 - SBC Pre '85 Oil Pan Gasket

Universal Dip Sticks:
PART #: 20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
PART #: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
